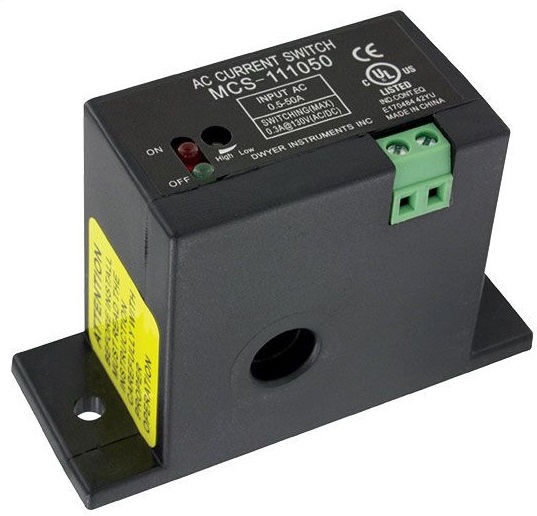

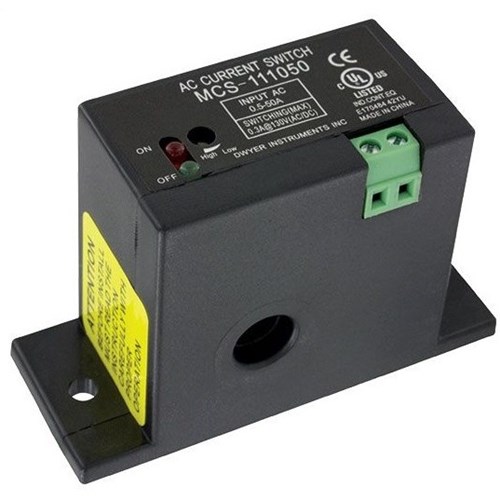

Dwyer MCS-111050 Miniature Current Switch

Product Code: MCS-111050

  • Current range: 0.5-50 A
  • High protection: IP66 rating
  • Wide humidity tolerance: 10-95%
  • Certified: CE, cUL, RoHS, UL approved
  • Lightweight design at 0.0145 kg
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
MINIATURE CURRENT SWITCHES
Brand
Dwyer
Series
MCS

Electrical

Current Measurement Range
0.5 to 50 A AC
Isolation Voltage
130 V DC/AC
Power Requirements
None,Self Powered

Mechanical

Core Type
Solid
Housing Material
ABS
Set-Point Type
Adjustable

Environmental

Enclosure Rating
UL 94 V-0, insulation class 600 V.
