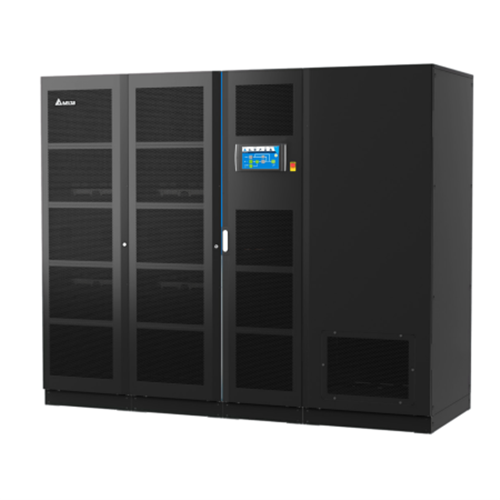

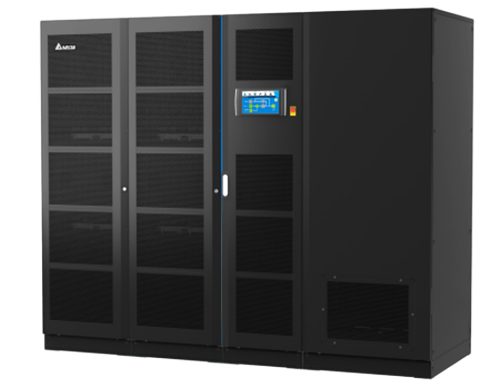

Delta UPS804DS3312035 UPS Ultron 20-1200kVA 380/400/415VAC

Product Code: UPS804DS3312035

  • Supports 380/400/415 VAC
  • Power range of 20-1200 kVA
  • Output frequency: 50/60 Hz
  • Terminal block connection
  • IP20 protection rating
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
UPS
Brand
Delta
Series
DPS
Application
IT, Telecom, Industrial, Transportation, Financial, Government

Electrical

1P / 3P / DC
3P
Battery Monitoring System
Battery temp sensing
Communication / Network Card
RS232, RS485, SMART Slot SNMP, Modbus RTU, Modbus TCP/IP, HTTP(S), SNTP, SMTP, Syslog, BOOTP, DHCP
External Chargers
Optional
kVA / kW (at unity Power Factor)
800 kVA/ 800 kW
Maintenance Bypass
Built-in maintenance bypass
On-board Battery / Seperate Battery Cabinet
External battery cabinet optional
Remote Monitoring
Yes (with SNMP/Network card)
Replacement Batteries
VRLA/ Li-ion
Terminal Type
SQNBS180-12

Mechanical

Tower / Rack / Cabinet
Cabinet

Dimensions & Physical Data

Depth
900mm
Height
2000mm
Weight
1270kg
Width
1800mm

Environmental

Operating Temperature without Derating
0°C to 40°C
Storage Temperature
-25°C to 70°C
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
CE, UKCA IEC 62040-2 IEC 62040-3 RoHS, REACH
