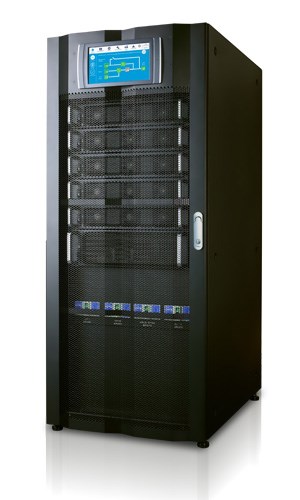

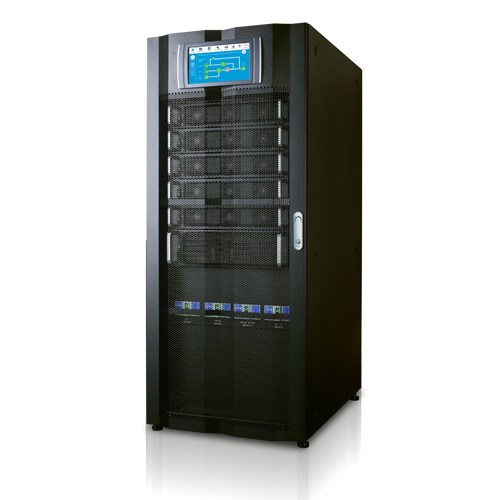

Delta UPS803DH33C2035 Double Conversion Online UPS DPH 80kVA 3PH

Product Code: UPS803DH33C2035

  • High-efficiency 3-phase UPS
  • Supports up to 80 kVA load
  • Ideal for critical power protection
  • Scalable and modular design
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
UPS
Brand
Delta
Series
DPH
Application
Small and medium data centers

Electrical

1P / 3P / DC
3P
Communication / Network Card
Smart slot x1, Modbus port (RS-485), REPO, EMS/Console (RJ45), BMS (RS-485), Ethernet port x1, Input dry contact x4, Output dry contact x6, External battery temperature detection x4, External switch/breaker status dry contact x4 switch/breaker status dry contact x4
kVA / kW (at unity Power Factor)
20/40/60/80 kVA 20/40/60/80 kW
On-board Battery / Seperate Battery Cabinet
Onboard/ Battery Cabinet
Replacement Batteries
40 pcs

Dimensions & Physical Data

Depth
1109mm
Height
2000mm
Weight
UPS: 269kg Per Power Module: 18kg
Width
600mm

Environmental

Operating Temperature without Derating
0°C to 40°C
Storage Temperature
-20°C to 50°C
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
RoHS, REACH, CE, UKCA, EAC, TISI, RCM, BIS, KC

Documents

IPD Product Catalogue V17
