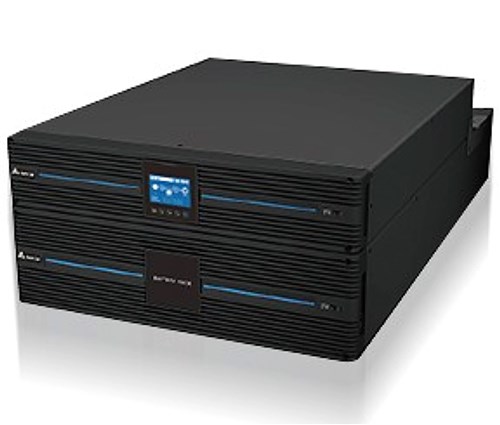

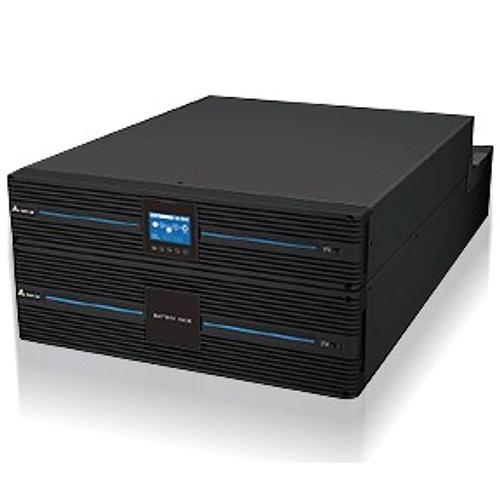

Delta UPS802R2RT2N035 Double Conversion Online UPS RT 8kVA/8kW 200/208/220/230/240VAC

Product Code: UPS802R2RT2N035

  • Supports 200-240 VAC with 8 kVA power capacity
  • Operates at 50/60 Hz output frequency
  • Low noise level of just 50 dBA
  • Wide humidity tolerance from 5% to 95%
  • Multiple communication interfaces: USB, RS232, RS485
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
UPS
Brand
Delta
Series
Amplon RT
Application
Maintenance Bypass Breaker and Rack Remote Power Panel

Electrical

1P / 3P / DC
1P
Communication / Network Card
USB, RS-232, RS-485, Mini Slot, REPO, Input dry contact x1, Output dry contact x3
kVA / kW (at unity Power Factor)
8 kVA/ 8 kW
On-board Battery / Seperate Battery Cabinet
Battery Cabinet

Dimensions & Physical Data

Depth
750mm
Height
218mm
Weight
85.5kg
Width
440mm

Environmental

Operating Temperature without Derating
0°C to 40°C
Storage Temperature
-20°C to 50°C
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
RoHS, REACH, CE, UKCA, EAC, TISI, RCM, BIS, KC

Documents

IPD Product Catalogue V17
