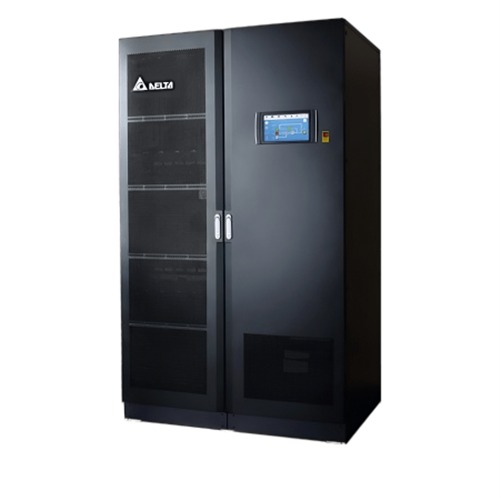

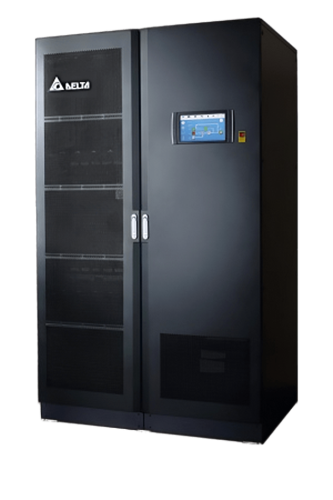

Delta UPS604DS3312A35 UPS 600kVA 380/400/415VAC

Product Code: UPS604DS3312A35

  • Suitable for 380/400/415 VAC systems
  • Delivers 600 kVA power output
  • Compatible with 50/60 Hz frequency
  • Terminal block connection type
  • Dimensions: 1200x2000x900 mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
UPS
Brand
Delta
Series
DPS
Application
IT, Telecom, Industrial, Transportation, Financial, Government

Electrical

1P / 3P / DC
3P
Battery Monitoring System
Battery temp sensing
Communication / Network Card
RS232, RS485, SMART Slot SNMP, Modbus RTU, Modbus TCP/IP, HTTP(S), SNTP, SMTP, Syslog, BOOTP, DHCP
External Chargers
Optional
kVA / kW (at unity Power Factor)
600 kVA/ 600 kW
Maintenance Bypass
Built-in maintenance bypass
On-board Battery / Seperate Battery Cabinet
Separate battery cabinet
Remote Monitoring
Yes
Replacement Batteries
VRLA, LiB
Terminal Type
SQNBS180-12

Mechanical

Tower / Rack / Cabinet
Tower cabinet

Dimensions & Physical Data

Depth
975mm
Height
1695mm
Weight
970kg
Width
520mm

Environmental

Operating Temperature without Derating
0°C to 40°C
Storage Temperature
-25°C to 70°C
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
CE, UKCA IEC 62040-2 IEC 62040-3 RoHS, REACH

Documents

IPD Product Catalogue V17
