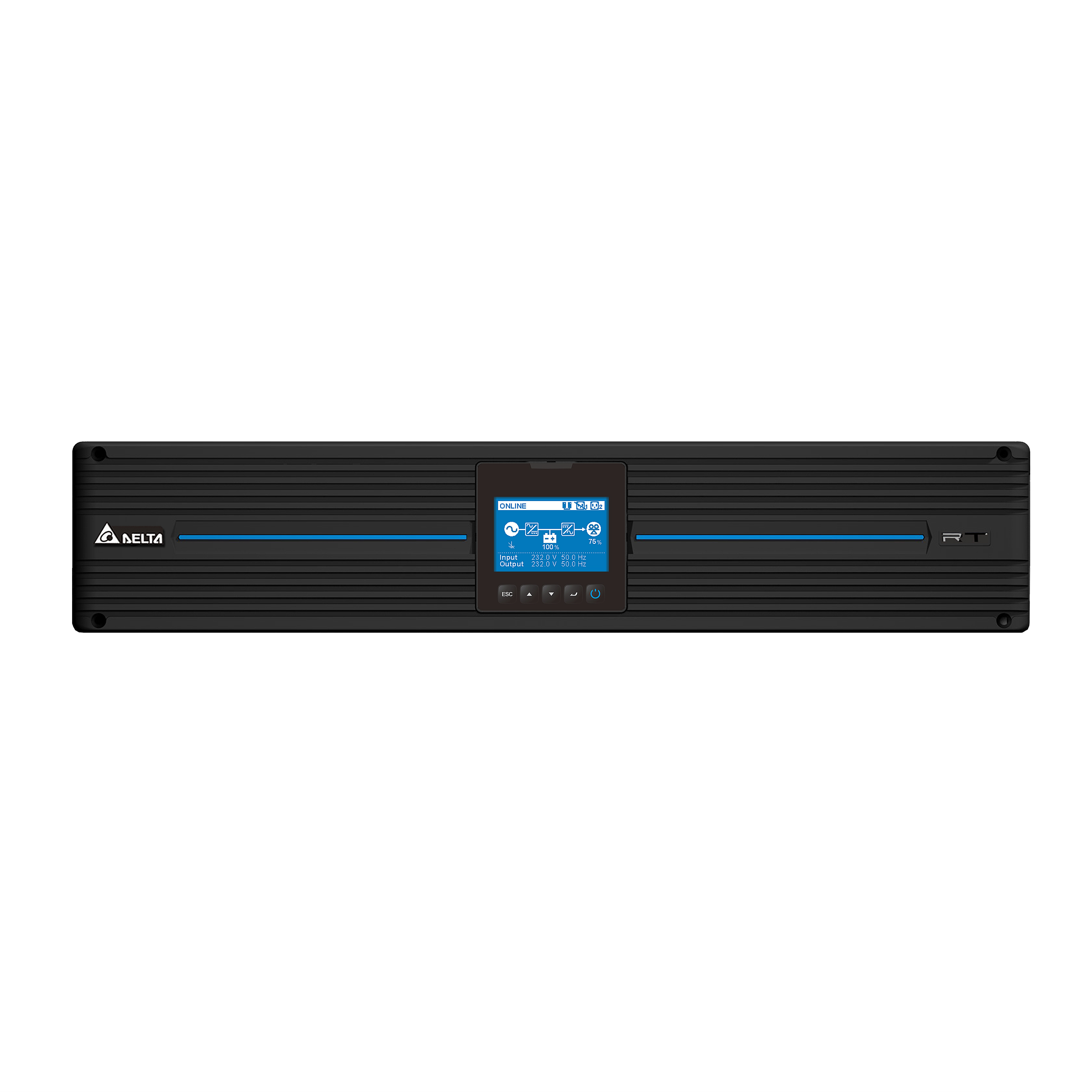

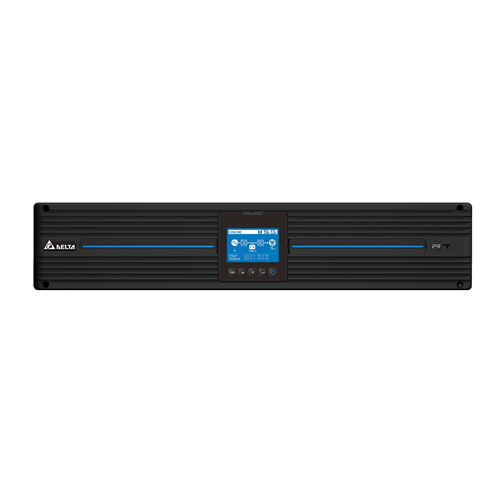

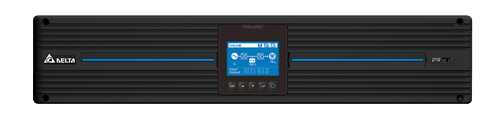

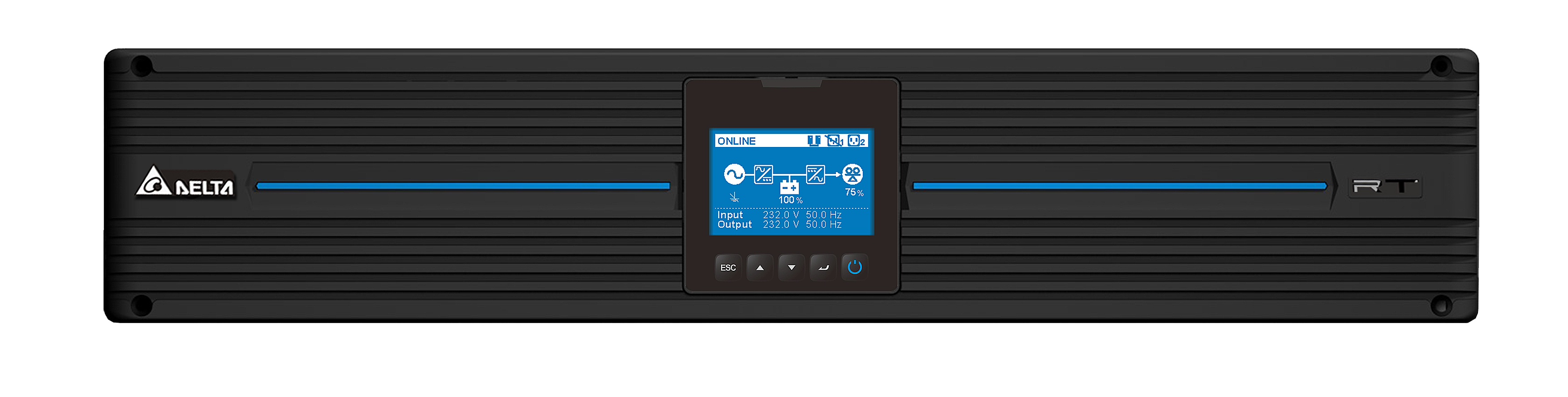

Delta UPS602R2RT2N035 Double Conversion Online UPS RT 6kVA/6kW 200/208/220/230/240VAC 1PH

Product Code: UPS602R2RT2N035

  • High power factor > 0.99 for efficiency
  • Supports 200-240 VAC rated voltage range
  • Operates at both 50/60 Hz output frequency
  • Quiet operation with noise level of 48 dBA
  • Comprehensive communication interfaces: USB, RS232, RS485
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
UPS
Brand
Delta
Series
RT Amplon
Application
IT, Telecom, Industrial, Transportation, Financial, Government, SME, Retail

Electrical

1P / 3P / DC
1P
Battery Monitoring System
Yes
Communication / Network Card
LCD display with LED indicators, USB, RS-232, REPO, Mini Slot, Input dry contact x1, Output dry contact x3
kVA / kW (at unity Power Factor)
6 kVA / 6 kW
Maintenance Bypass
Yes
On-board Battery / Seperate Battery Cabinet
Onboard
Terminal Type
SQNBS180-12

Mechanical

Tower / Rack / Cabinet
Rack/ Tower

Dimensions & Physical Data

Depth
665mm
Height
176mm
Weight
55kg
Width
440mm

Environmental

Operating Temperature without Derating
0°C to 55°C
Storage Temperature
-20°C to 50°C
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
CE, UKCA, TISI, RCM UL, cUL IEC 62040-2, IEC 62040 - 3 RoHS, REACH

Documents

IPD Product Catalogue V17
