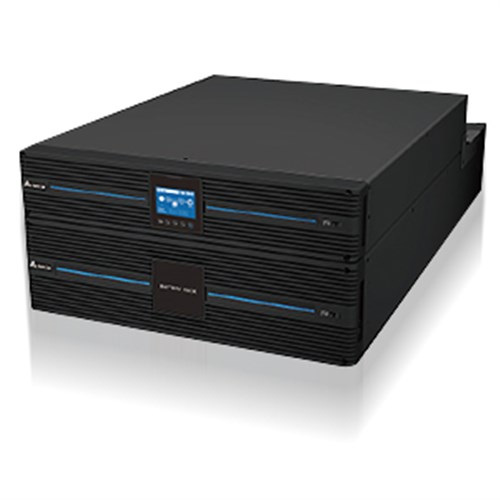

Delta UPS602R2RT0B035 UPS with Battery Rack/Tower RT 6kVA/6kW 200/208/220/230/240VAC

Product Code: UPS602R2RT0B035

  • Versatile voltage range: 200-240 VAC
  • High power capacity: 6 kVA
  • Quiet operation at 48 dBA
  • Multiple output options: C13, C19, terminal
  • Wide input frequency range: 40/70 Hz
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
UPS
Brand
Delta
Series
Amplon RT
Application
Maintenance Bypass Breaker and Rack Remote Power Panel

Electrical

1P / 3P / DC
1P
Communication / Network Card
USB, RS-232, RS-485, Mini Slot, REPO, Input dry contact x1, Output dry contact x3
kVA / kW (at unity Power Factor)
6 kVA/ 6 kW
On-board Battery / Seperate Battery Cabinet
Battery Cabinet

Dimensions & Physical Data

Depth
665mm
Height
176mm
Weight
54kg
Width
440mm

Environmental

Operating Temperature without Derating
0°C to 40°C
Storage Temperature
-20°C to 50°C
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
RoHS, REACH, CE, UKCA, EAC, TISI, RCM, BIS, KC
