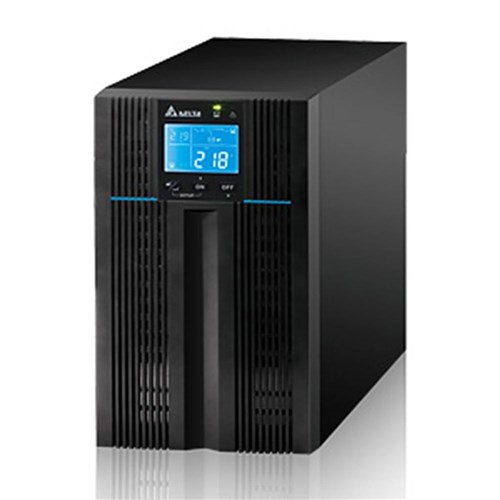

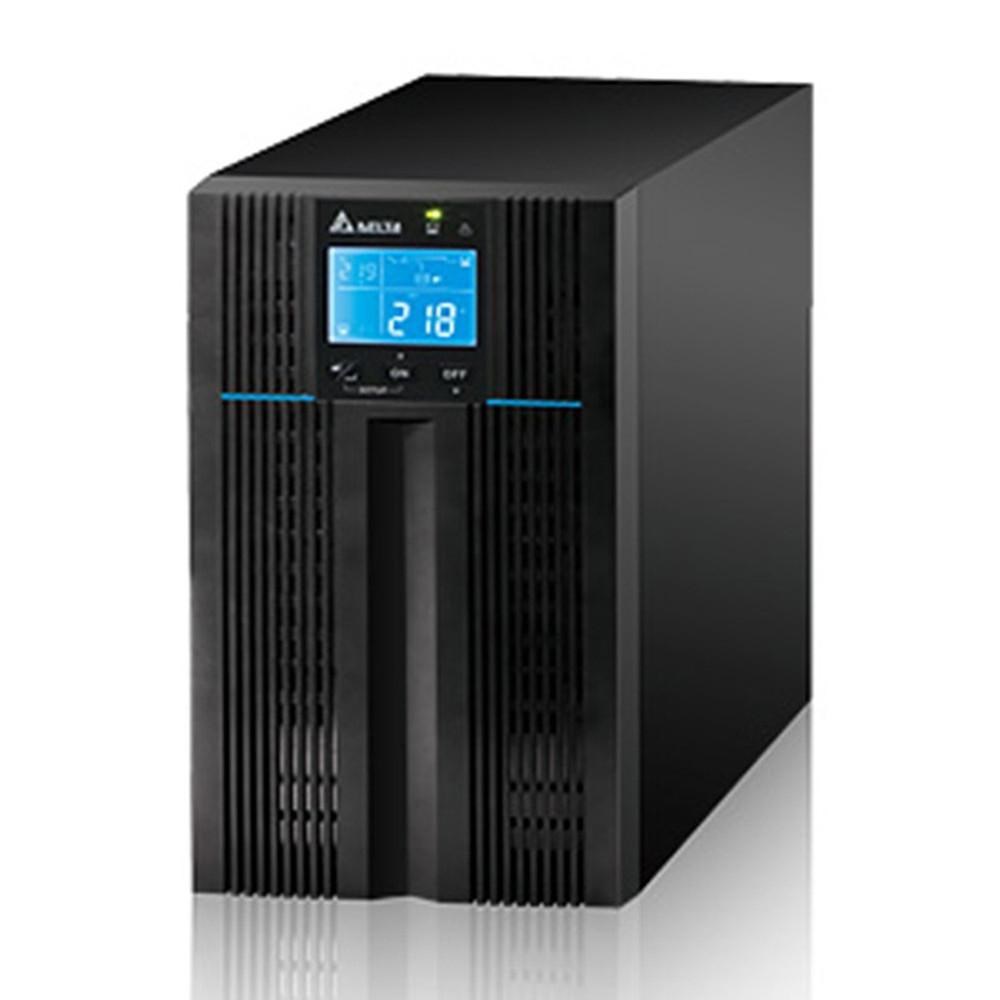

Delta UPS602N2004N035 Double Conversion Online UPS N 6kVA/6kW 200/208/220/230/240VAC

Product Code: UPS602N2004N035

  • Supports 200-240 VAC for versatile use
  • Delivers 6 kVA power output
  • Operates quietly at <50 dBA
  • Wide humidity tolerance of 5-95%
  • Smart Slot for enhanced communication
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
UPS
Brand
Delta
Series
N -Series
Application
IT, Telecom, Industrial, Transportation, Financial, Government, SME, Retail

Electrical

1P / 3P / DC
1P
Battery Monitoring System
Yes
Communication / Network Card
REPO x 1, RS - 232 Port x 1, USB Port x 1
kVA / kW (at unity Power Factor)
6 kVA/ 6 kW
Maintenance Bypass
Yes
On-board Battery / Seperate Battery Cabinet
Onboard
Terminal Type
Screw Terminal

Mechanical

Tower / Rack / Cabinet
Tower

Dimensions & Physical Data

Depth
390 mm
Height
325 mm
Weight
12.7 kg
Width
190 mm

Environmental

Operating Temperature without Derating
0 - 40 ºC
Storage Temperature
-15~50?
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
CE EN62040-1, EN 62040 - 2 Cat. C2

Documents

IPD Product Catalogue V17
