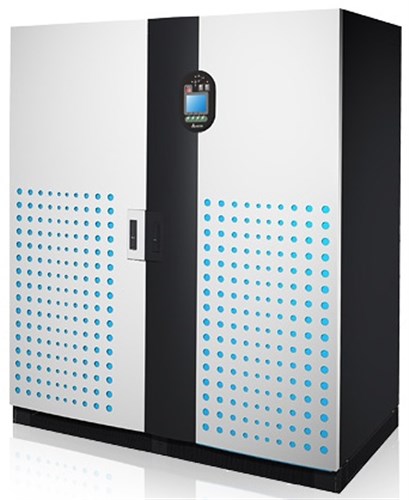

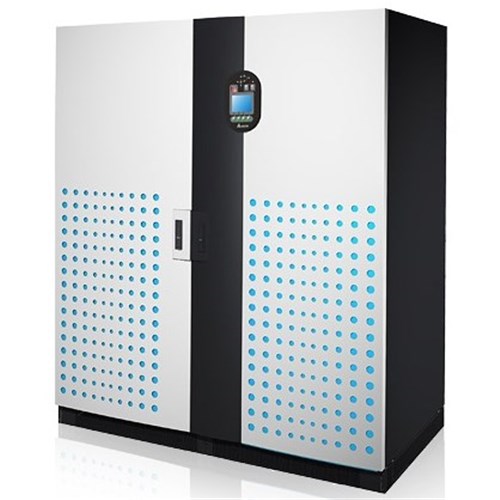

Delta UPS504DS3312A35 UPS 500kW 380/400/415VAC 3-3 3-1PH

Product Code: UPS504DS3312A35

  • Supports 380/400/415 VAC, 500 kW power
  • High power factor over 0.99
  • Operates at 50/60 Hz frequency
  • Features a 10" colour touch panel display
  • Compact size: W1200 x H2000 x D900 mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
UPS
Brand
Delta
Series
DPS
Application
IT, Telecom, Industrial, Transportation, Financial, Government

Electrical

1P / 3P / DC
3P
Battery Monitoring System
Battery temp sensing
Communication / Network Card
RS232, RS485, SMART Slot SNMP, Modbus RTU, Modbus TCP/IP, HTTP(S), SNTP, SMTP, Syslog, BOOTP, DHCP
External Chargers
Optional
kVA / kW (at unity Power Factor)
500 kVA / 500 kW
Maintenance Bypass
Built-in maintenance bypass
On-board Battery / Seperate Battery Cabinet
Separate battery cabinet
Remote Monitoring
Yes
Replacement Batteries
VRLA, LiB
Terminal Type
SQNBS180-12

Mechanical

Tower / Rack / Cabinet
Tower cabinet

Dimensions & Physical Data

Depth
975mm
Height
1695mm
Weight
811kg
Width
520mm

Environmental

Operating Temperature without Derating
0°C to 40°C
Storage Temperature
-25°C to 70°C
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
CE, UKCA IEC 62040-2 IEC 62040-3 RoHS, REACH
