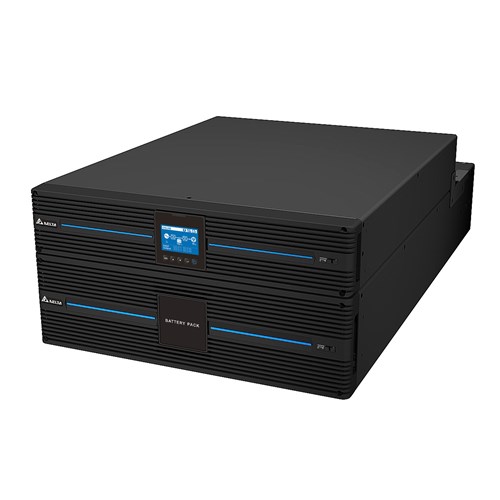

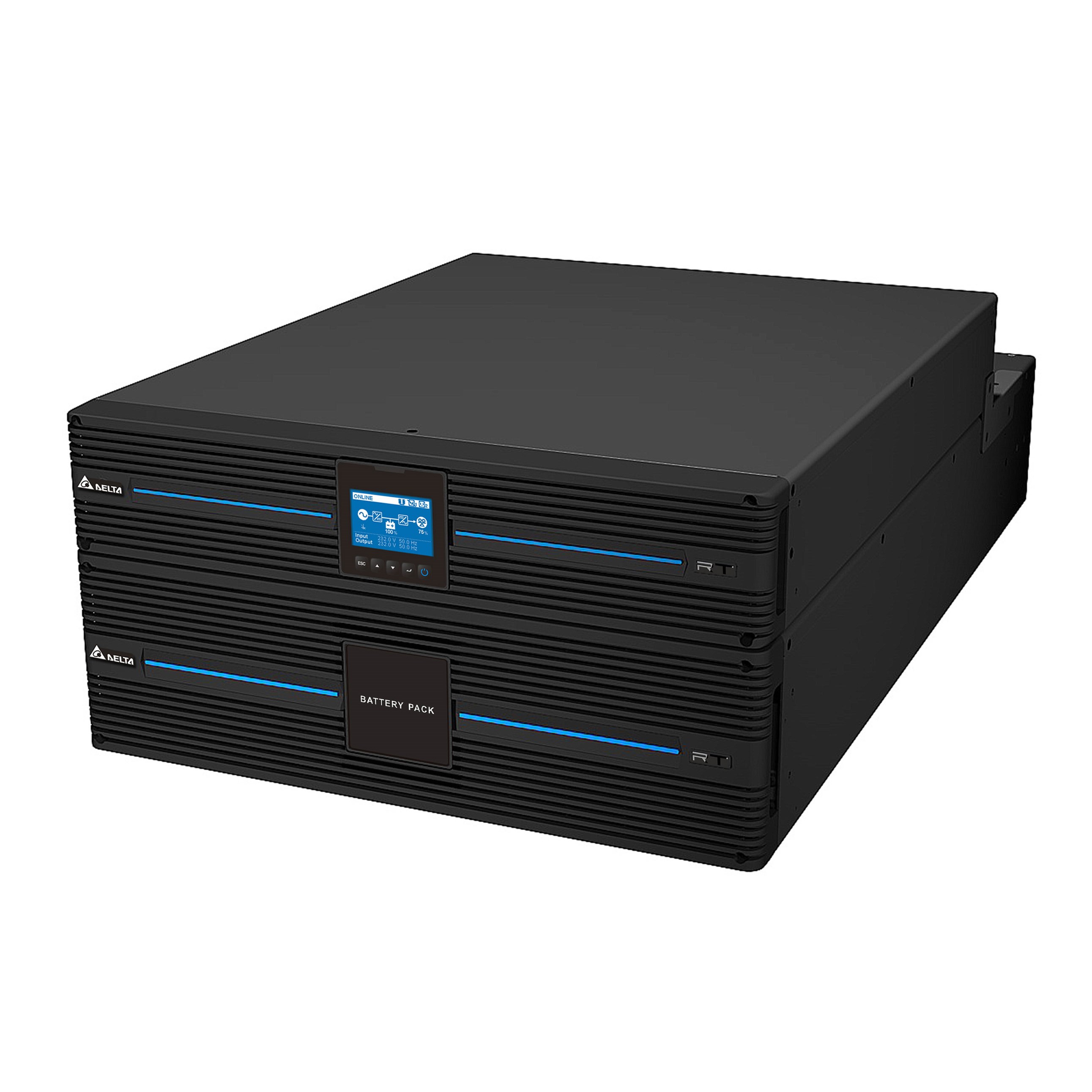

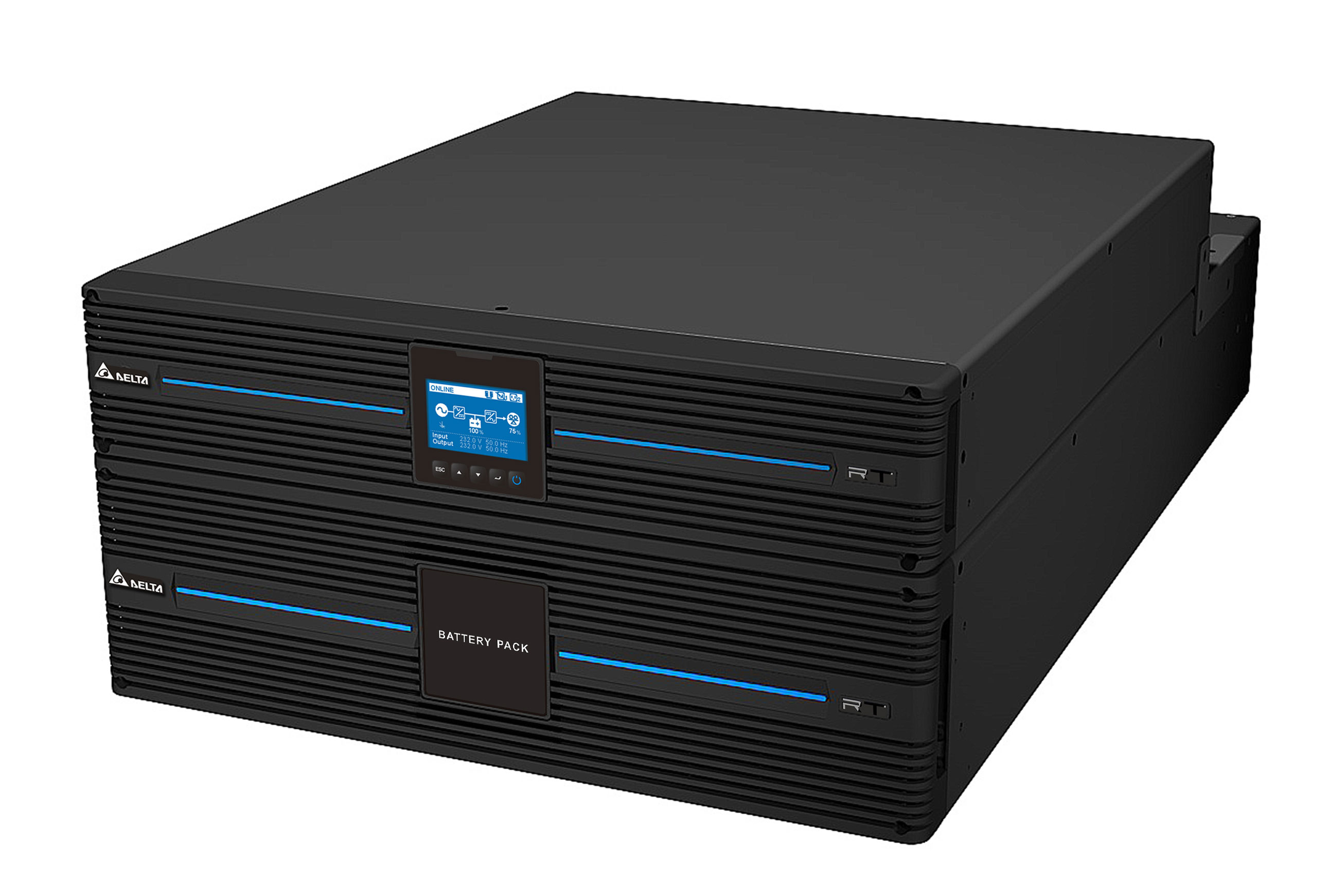

Delta UPS502R2RT2N035 Double Conversion Online UPS RT 5kVA/5kW 200/208/220/230/240VAC

Product Code: UPS502R2RT2N035

  • Supports 200-240 VAC with 5 kVA/5 KW power
  • Operates at 50/60 Hz output frequency
  • Low noise level of 50 dBA
  • Wide humidity range of 5-95%
  • Multiple communication interfaces: USB, RS232, RS485
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
UPS
Brand
Delta
Series
Amplon RT
Application
Maintenance Bypass Breaker and Rack Remote Power Panel

Electrical

1P / 3P / DC
1P
kVA / kW (at unity Power Factor)
5 kVA/ 5 kW
On-board Battery / Seperate Battery Cabinet
Battery Cabinet

Dimensions & Physical Data

Depth
665 mm
Height
176 mm
Weight
54 Kg
Width
440 mm

Environmental

Operating Temperature without Derating
0 to 40°C
Storage Temperature
-20 to 50°C
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
RoHS, REACH, CE, UKCA, EAC, TISI, RCM, BIS, KC

Documents

IPD Product Catalogue V17
