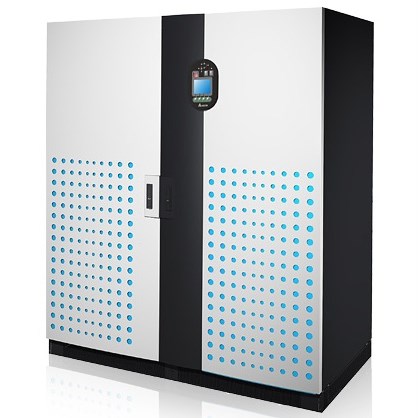

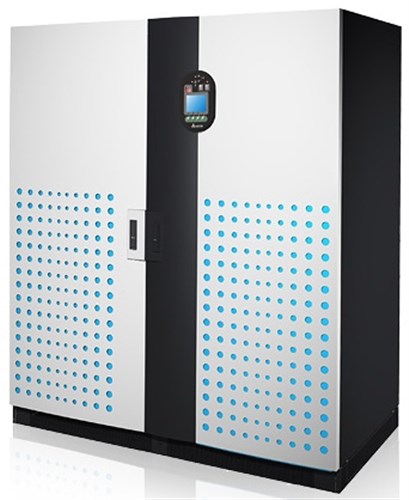

Delta UPS404DS3312A35 UPS 20-1200kVA 380/400/415VAC

Product Code: UPS404DS3312A35

  • Supports 380/400/415 VAC
  • Power range: 20-1200 kVA
  • Output frequency: 50/60 Hz
  • Terminal block connection type
  • Dimensions: 1200x2000x900 mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
UPS
Brand
Delta
Series
DPS
Application
IT, Telecom, Industrial, Transportation, Financial, Government

Electrical

1P / 3P / DC
3P
Battery Monitoring System
External battery temperature detection
Communication / Network Card
RS232, RS485, SMART Slot SNMP, Modbus RTU, Modbus TCP/IP, HTTP(S), SNTP, SMTP, Syslog, BOOTP, DHCP
External Chargers
Optional
kVA / kW (at unity Power Factor)
400 kVA/ 400 kW
Maintenance Bypass
Inbuilt maintenance bypass
On-board Battery / Seperate Battery Cabinet
Separate battery cabinet
Remote Monitoring
Yes
Replacement Batteries
VRLA/ Li-ion
Terminal Type
SQNBS80-12

Mechanical

Tower / Rack / Cabinet
Cabinet

Dimensions & Physical Data

Depth
900mm
Height
2000mm
Weight
2000kg
Width
2450mm

Environmental

Operating Temperature without Derating
0°C to 40°C
Storage Temperature
-25°C to 70°C
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
CE, UKCA IEC 62040-2 IEC 62040-3 RoHS, REACH

Documents

IPD Product Catalogue V17
