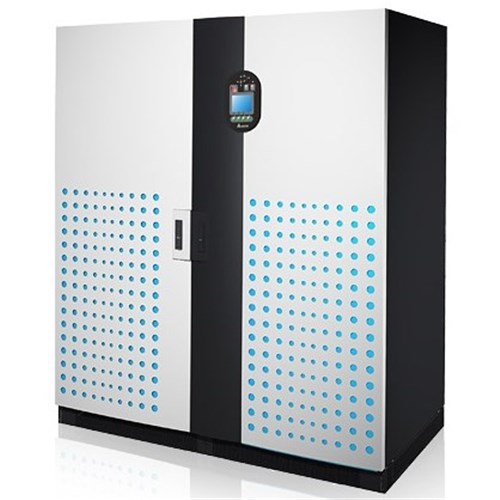

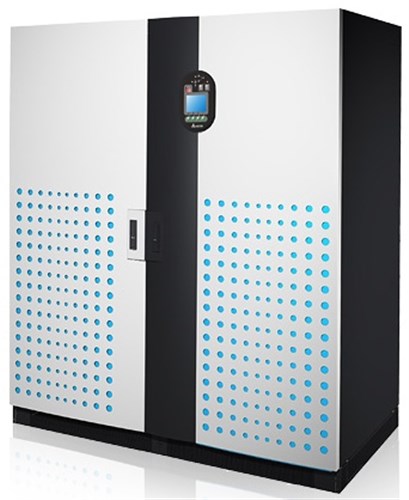

Delta UPS304DS3312A35 UPS 300kW 220/380VAC 230/400VAC 240/415VAC 3PH

Product Code: UPS304DS3312A35

  • Supports 220/380, 230/400, 240/415 VAC
  • High power output of 300 kW
  • Excellent power factor >0.99
  • Operates at 50/60 Hz frequency
  • Intuitive 10" colour touch panel
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
UPS
Brand
Delta
Series
DPS
Application
IT, Telecom, Industrial, Transportation, Financial, Government

Electrical

1P / 3P / DC
3P
Battery Monitoring System
External battery temperature detection
Communication / Network Card
RS232, RS485, SMART Slot SNMP, Modbus RTU, Modbus TCP/IP, HTTP(S), SNTP, SMTP, Syslog, BOOTP, DHCP
External Chargers
Optional
kVA / kW (at unity Power Factor)
300kVA/ 300 kW
Maintenance Bypass
Inbuilt maintenance bypass
On-board Battery / Seperate Battery Cabinet
Separate battery cabinet
Remote Monitoring
Yes
Replacement Batteries
VRLA/ Li-ion
Terminal Type
SQNBS80-12

Mechanical

Tower / Rack / Cabinet
Cabinet

Dimensions & Physical Data

Depth
900mm
Height
2000mm
Weight
515kg
Width
600mm

Environmental

Operating Temperature without Derating
0°C to 40°C
Storage Temperature
-25°C to 70°C
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
CE, UKCA IEC 62040-2 IEC 62040-3 RoHS, REACH

Documents

IPD Product Catalogue V17
