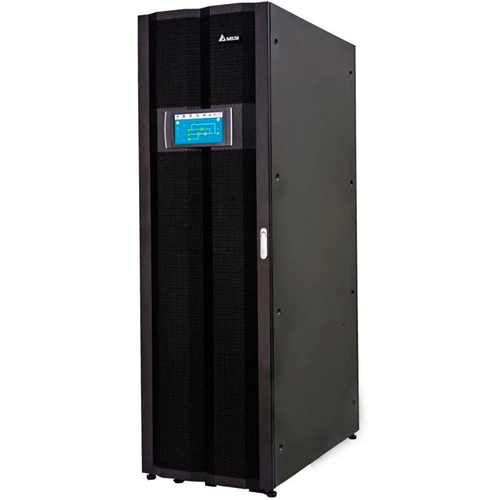

Delta UPS304DH33A2035 Double Conversion Online UPS DPH 300kVA 3PH

Product Code: UPS304DH33A2035

  • High-capacity 300 kVA power rating
  • Reliable three-phase UPS system
  • Ideal for large-scale applications
  • Efficient power management solution
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
UPS
Brand
Delta
Series
DPH
Application
Data Center, Telecom, Industrial, Medical

Electrical

1P / 3P / DC
3P
Battery Monitoring System
Yes
Communication / Network Card
RS232, USB, Modbus, Ethernet, SNMP slot
kVA / kW (at unity Power Factor)
300 kVA/300 kW
Maintenance Bypass
Yes
On-board Battery / Seperate Battery Cabinet
External VRLA/Lithium-ion
Remote Monitoring
Yes

Mechanical

Tower / Rack / Cabinet
Cabinet

Dimensions & Physical Data

Depth
1100mm
Height
2000mm
Weight
311kg
Width
600mm

Environmental

Operating Temperature without Derating
0°C to 45°C
Storage Temperature
0°C to 40°C
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
IEC 62040-2, IEC 62040-3, CE UKCA RCM

Documents

IPD Product Catalogue V17
