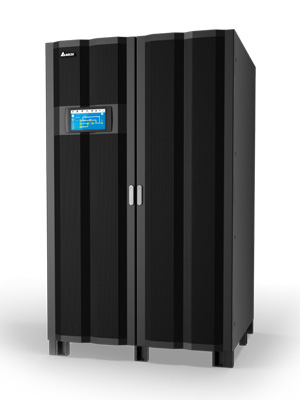

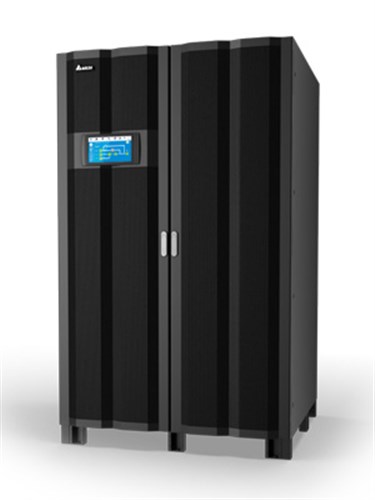

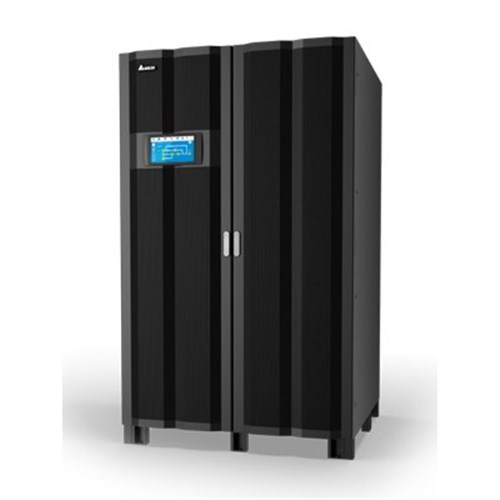

Delta UPS204DH33A2V35 UPS DPH 200000W 3PH

Product Code: UPS204DH33A2V35

  • High power capacity of 200kW
  • Supports 3-phase systems
  • Compact design: 600mm wide
  • Tall structure: 2000mm height
  • Robust build at 275kg
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
UPS
Brand
Delta
Series
DPH
Application
Small and medium data centers

Electrical

1P / 3P / DC
3P
Communication / Network Card
Smart slot x1, Modbus port (RS-485), REPO, EMS/Console (RJ45), BMS (RS-485), Ethernet port x1, Input dry contact x4, Output dry contact x6, External battery temperature detection x4, External switch/breaker status dry contact x4
kVA / kW (at unity Power Factor)
50/100/150/200 kVA 50/100/150/200 kW
On-board Battery / Seperate Battery Cabinet
Battery Cabinet

Dimensions & Physical Data

Depth
1109mm
Height
2000mm
Weight
UPS: 275kg Per Power Module: 36.9kg
Width
600mm

Environmental

Operating Temperature without Derating
0°C to 40°C
Storage Temperature
-20°C to 50°C

Safety, Standards & Compliance

Standards and Approvals
RoHS, REACH, CE, UKCA, EAC, TISI, RCM, BIS, KC

Documents

IPD Product Catalogue V17
