Specifications

Product Type UPS	Brand Delta	Series HPH Gen2
Application Various small and medium-sized data centers and critical power backups

1P / 3P / DC 3P	Communication / Network Card External battery temperature detection x1, Output dry contact x4, Input dry contact x2, Parallel port x2, USB Port x1, RS232 Port x1, REPO Port x1, Mini Slot x2	kVA / kW (at unity Power Factor) 20kVA/ 20 kW
On-board Battery / Seperate Battery Cabinet Onboard	Replacement Batteries 30-46 Pcs	Terminal Type Screw Terminals

Depth 630mm	Height 650mm	Weight External Battery Model 44kg Integrated Battery Model 334kg (with Battery) 94kg (without Battery)
Width 240mm

Operating Temperature without Derating

0°C to 40°C

Storage Temperature

-20°C to 50°C

IP Rating

IP20 (Standard); IP42 (Optional for long backup model)

Standards and Approvals

RoHS, REACH, CE, UKCA, EAC, TISI, RCM, BIS, KC

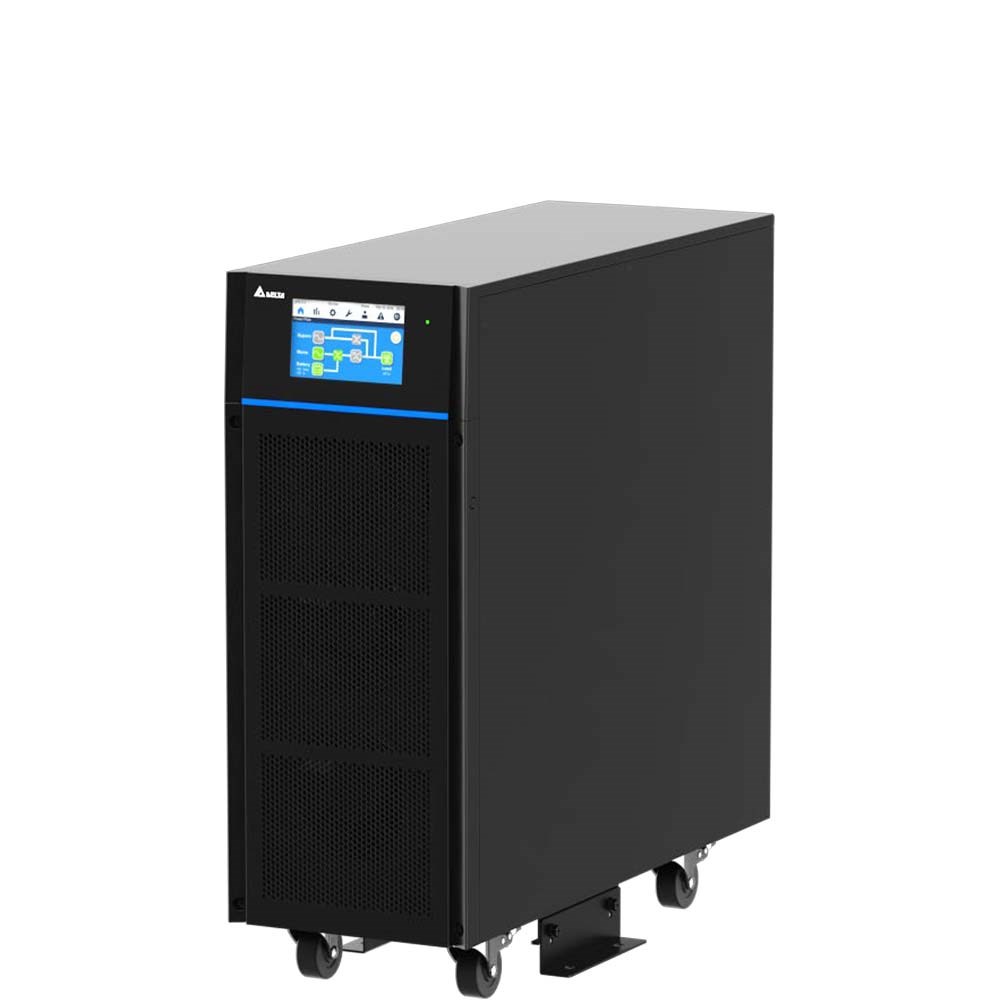

Delta UPS203HH3300035 UPS HPH 20kVA 220/380VAC 230/400VAC 240/415VAC 3PH
