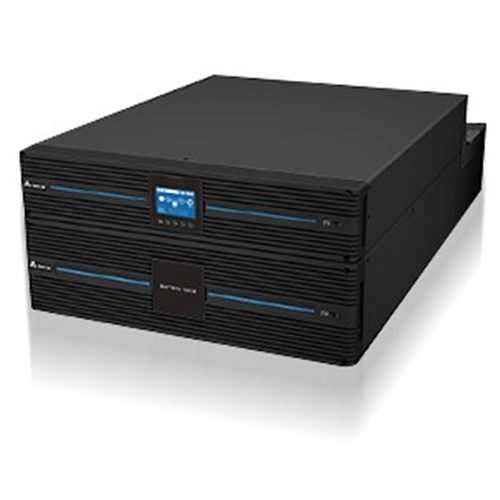

Delta UPS153R6RT2N035 UPS with Battery Rack/Tower RT 15kVA/15kW 380/400/415VAC 220/230/240VAC 3PH

Product Code: UPS153R6RT2N035

  • 15 kVA power capacity for robust performance
  • Supports 380/400/415 & 220/230/240 VAC
  • Operates at 50/60 Hz frequency
  • Compact design: 440x88.2x760 mm, weighs 22 kg
  • Multiple communication interfaces: USB, RS232, RS485
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
UPS
Brand
Delta
Series
Amplon RT
Application
Maintenance Bypass Breaker and Rack Remote Power Panel

Electrical

1P / 3P / DC
3P
Communication / Network Card
USB, RS-232, RS-485, Mini Slot, REPO, Input dry contact x1, Output dry contact x3
kVA / kW (at unity Power Factor)
15kVA/ 15 kW
On-board Battery / Seperate Battery Cabinet
Battery Cabinet

Dimensions & Physical Data

Depth
760mm
Height
88.2mm
Weight
22kg
Width
440mm

Environmental

Operating Temperature without Derating
0°C to 40°C
Storage Temperature
-20°C to 50°C
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
RoHS, REACH, CE, UKCA, EAC, TISI, RCM, BIS, KC

Documents

IPD Product Catalogue V17
