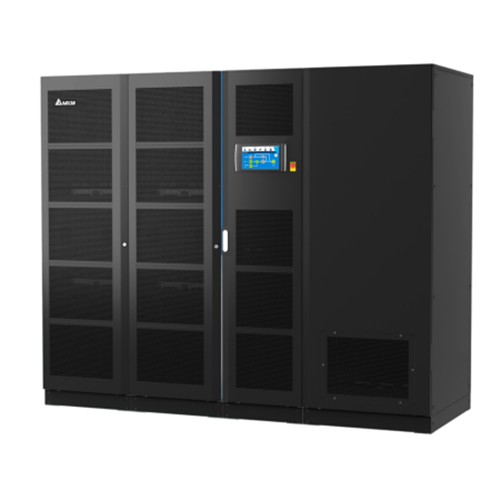

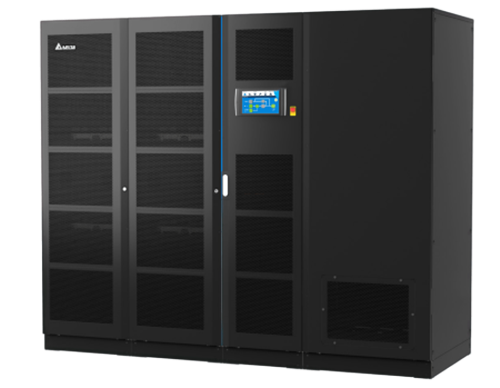

Delta UPS125DS3312035 UPS 20-1200kVA 380/400/415VAC

Product Code: UPS125DS3312035

  • Voltage range: 380/400/415 VAC
  • Power capacity: 20-1200 kVA
  • Output frequency: 50/60 Hz
  • Terminal block connection
  • Dimensions: 2450x2000x900 mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
UPS
Brand
Delta
Series
DPS
Application
IT, Telecom, Industrial, Transportation, Financial, Government

Electrical

1P / 3P / DC
3P
Battery Monitoring System
External battery temperature detection
Communication / Network Card
RS232, RS485, SMART Slot SNMP, Modbus RTU, Modbus TCP/IP, HTTP(S), SNTP, SMTP, Syslog, BOOTP, DHCP
External Chargers
Optional
kVA / kW (at unity Power Factor)
1200 kVA/1200 kW
Maintenance Bypass
Built-in
On-board Battery / Seperate Battery Cabinet
Separate battery cabinet
Remote Monitoring
Yes
Replacement Batteries
VRLA batteries
Terminal Type
SQNBS180-12

Mechanical

Tower / Rack / Cabinet
Cabinet

Dimensions & Physical Data

Depth
900mm
Height
2000mm
Weight
2000kg
Width
2450mm

Environmental

Operating Temperature without Derating
0°C to 40°C
Storage Temperature
-25°C to 70°C
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
IEC 62040-3 IEC 62040-2 CE, UKCA, RoHS, REACH

Documents

IPD Product Catalogue V17
