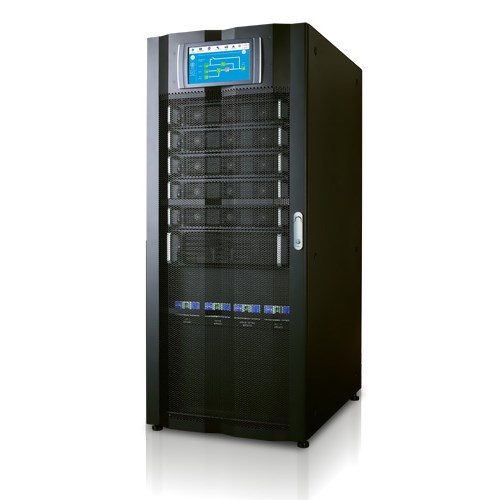

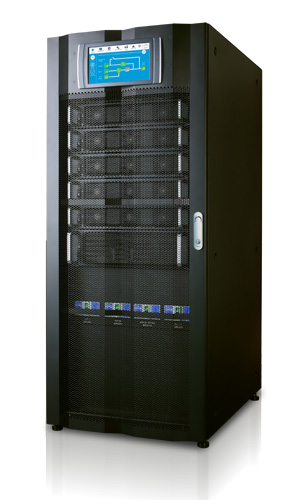

Delta UPS124DH33C2035 Double Conversion Online UPS DPH 120kVA 400V 3PH

Product Code: UPS124DH33C2035

  • High efficiency with 0.9 power factor
  • Supports 3-phase systems
  • Versatile 50/60 Hz output frequency
  • Operates in 0 to 40°C range
  • Robust 120 kVA rated power
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
UPS
Brand
Delta
Series
DPH
Application
Data Center, Telecom, Industrial, Medical

Electrical

1P / 3P / DC
3P
Battery Monitoring System
BMS supported
Communication / Network Card
Ethernet SNMP Modbus Smart Slot
External Chargers
Integrated
kVA / kW (at unity Power Factor)
120 kVA/120 kW
Maintenance Bypass
Modular bypass
On-board Battery / Seperate Battery Cabinet
External VRLA/Lithium-ion
Remote Monitoring
Yes

Mechanical

Tower / Rack / Cabinet
Cabinet

Dimensions & Physical Data

Depth
850mm
Height
1445mm
Weight
162kg
Width
600mm

Environmental

Operating Temperature without Derating
0°C to 40°C
Storage Temperature
-20°C to 70°C
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
IEC 62040-2, IEC 62040-3, CE UKCA RCM

Documents

IPD Product Catalogue V17
