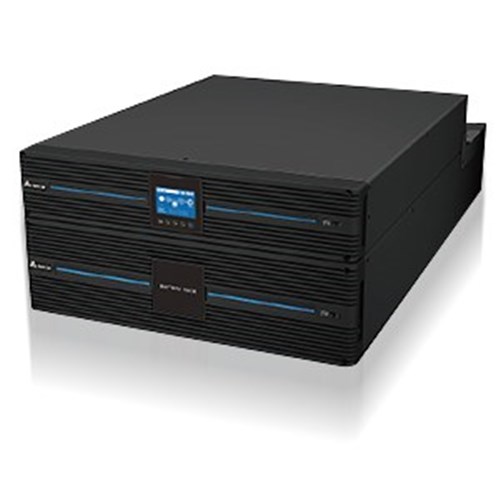

Delta UPS103R6RT2N035 UPS with Battery Rack/Tower RT 10kVA/10kW 380/400/415VAC 220/230/240VAC 3PH

Product Code: UPS103R6RT2N035

  • Supports 3-phase power for robust performance
  • Wide voltage range: 380/400/415 VAC, 220/230/240 VAC
  • Low noise level at just 54 dBA
  • Multiple communication interfaces: USB, RS232, RS485
  • Compact design: W440 x H88.2 x D649 mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
UPS
Brand
Delta
Series
Amplon RT
Application
Maintenance Bypass Breaker and Rack Remote Power Panel

Electrical

1P / 3P / DC
3P
Communication / Network Card
USB, RS-232, RS-485, Mini Slot, REPO, Input dry contact x1, Output dry contact x3
kVA / kW (at unity Power Factor)
10kVA/ 10 kW
On-board Battery / Seperate Battery Cabinet
Battery Cabinet

Dimensions & Physical Data

Depth
649mm
Height
88.2mm
Weight
16.6kg
Width
440mm

Environmental

Operating Temperature without Derating
0°C to 40°C
Storage Temperature
-20°C to 50°C
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
RoHS, REACH, CE, UKCA, EAC, TISI, RCM, BIS, KC

Documents

IPD Product Catalogue V17
