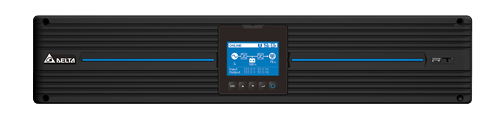

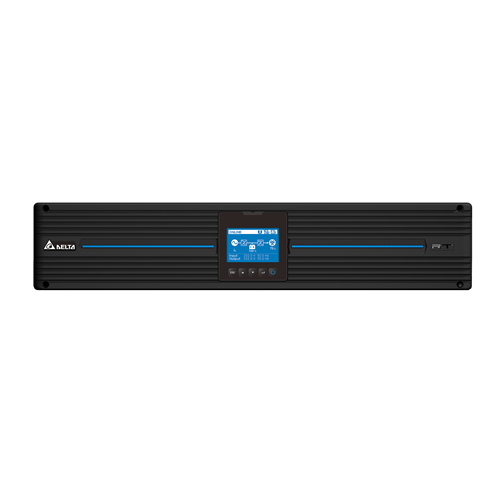

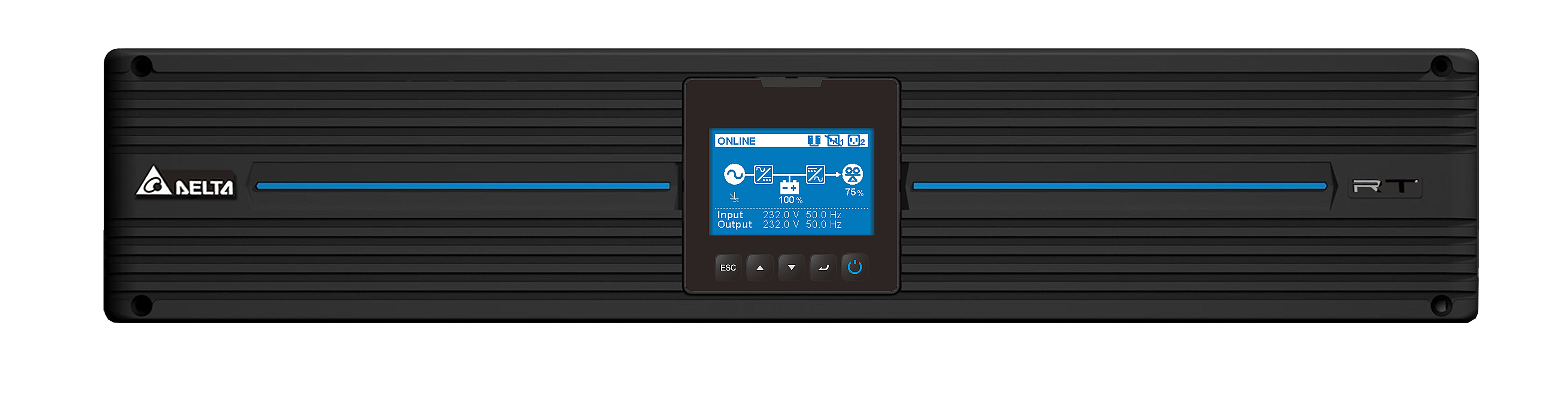

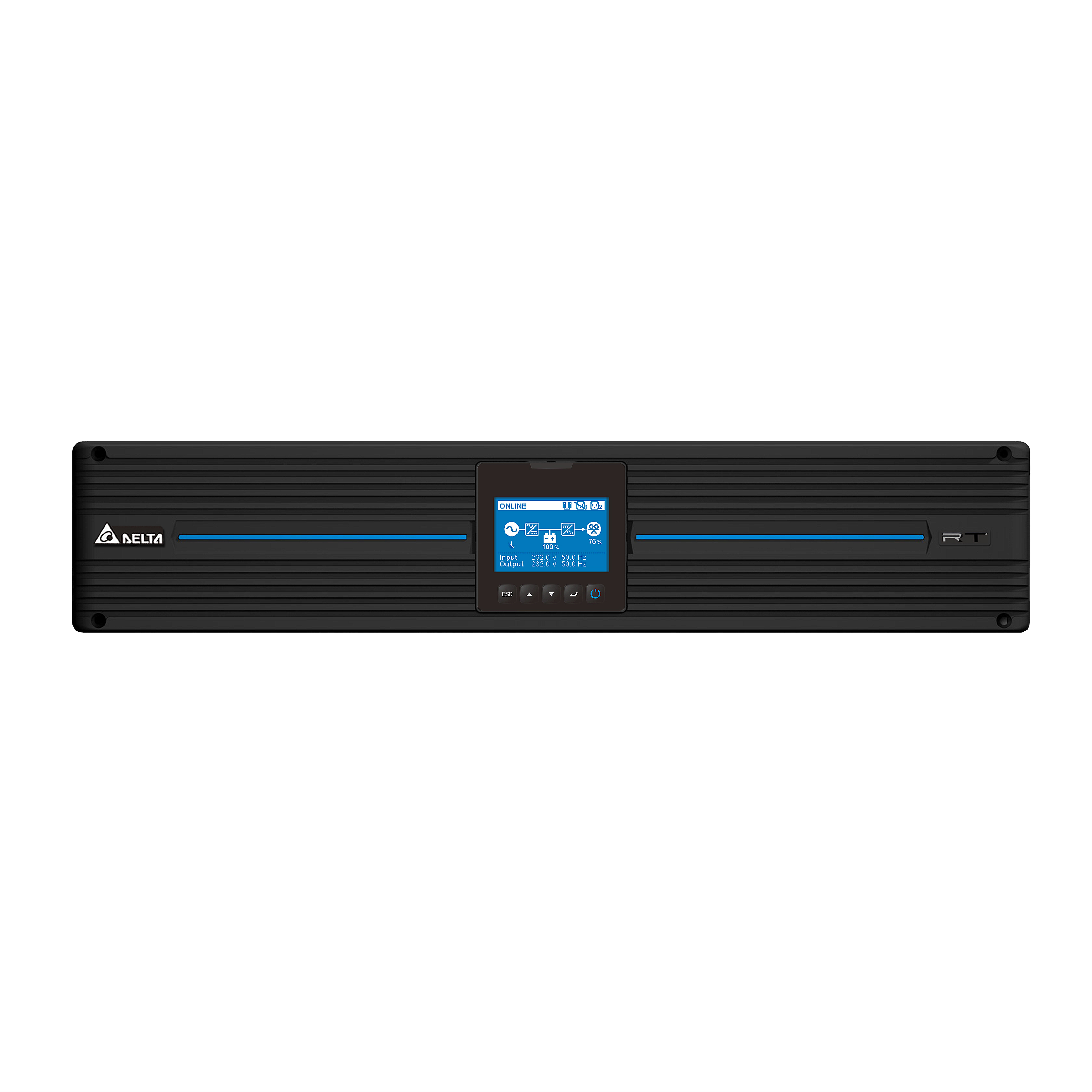

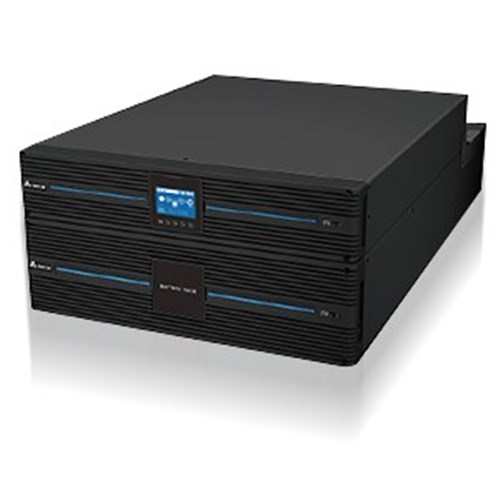

Delta UPS103R2RT2N035 UPS with Battery Rack/Tower RT 10kVA/10kW 200/208/220/230/240VAC

Product Code: UPS103R2RT2N035

  • 10 kW power, suitable for high-demand applications
  • Supports wide voltage range: 200-240 VAC
  • Quiet operation with 50 dBA noise level
  • Multiple communication interfaces: USB, RS232/485
  • Compact design: 565x88.2x430 mm, easy to install
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
UPS
Brand
Delta
Series
Amplon RT
Application
Maintenance Bypass Breaker and Rack Remote Power Panel

Electrical

1P / 3P / DC
1P
Communication / Network Card
USB, RS-232, RS-485, Mini Slot, REPO, Input dry contact x1, Output dry contact x3
kVA / kW (at unity Power Factor)
10kVA/ 10 kW
On-board Battery / Seperate Battery Cabinet
Battery Cabinet

Dimensions & Physical Data

Depth
750mm
Height
218mm
Weight
85.5kg
Width
440mm

Environmental

Operating Temperature without Derating
0°C to 40°C
Storage Temperature
-20°C to 50°C
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
RoHS, REACH, CE, UKCA, EAC, TISI, RCM, BIS, KC

Documents

IPD Product Catalogue V17
