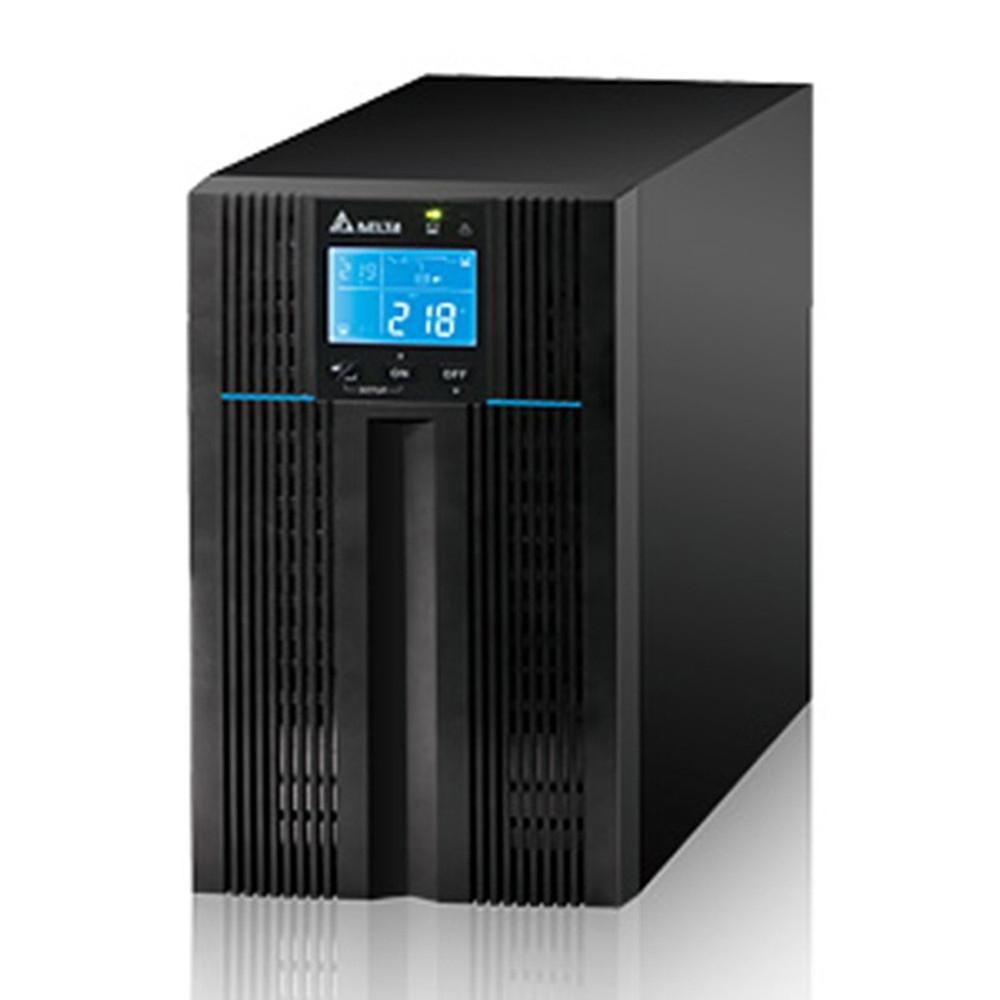

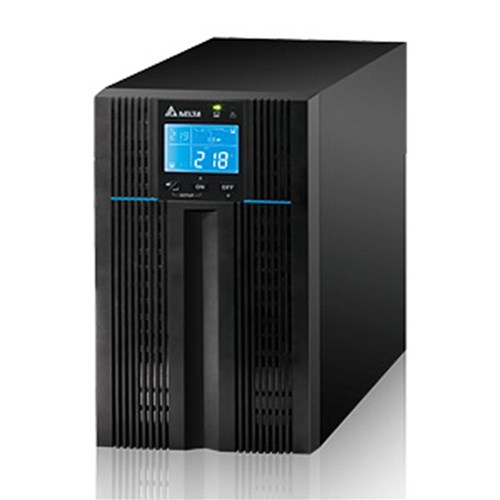

Delta UPS103N2004N035 Double Conversion Online UPS N 10kVA/10kW 200/208/220/230/240VAC

Product Code: UPS103N2004N035

  • Rated Power: 10 kW for robust performance
  • Voltage Flexibility: 200-240 VAC options
  • Quiet Operation: Noise level under 50 dBA
  • Wide Humidity Range: Operates at 5-95%
  • Compact Design: Measures 190x325x390 mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
UPS
Brand
Delta
Series
N
Application
IT, Telecom, Industrial, Transportation, Financial, Government, SME, Retail

Electrical

1P / 3P / DC
1P
Battery Monitoring System
Yes
Communication / Network Card
REPO x 1, RS - 232 Port x 1, USB Port x 1
kVA / kW (at unity Power Factor)
10 kVA/ 10 kW
Maintenance Bypass
Yes
On-board Battery / Seperate Battery Cabinet
Onboard
Terminal Type
Screw Terminal

Mechanical

Tower / Rack / Cabinet
Tower

Dimensions & Physical Data

Depth
390mm
Height
325mm
Weight
12.7kg
Width
190mm

Environmental

Operating Temperature without Derating
0°C to 40°C
Storage Temperature
-15~50°C
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
CE EN 62040-1, EN 62040 - 2 Cat. C2

Documents

IPD Product Catalogue V17
