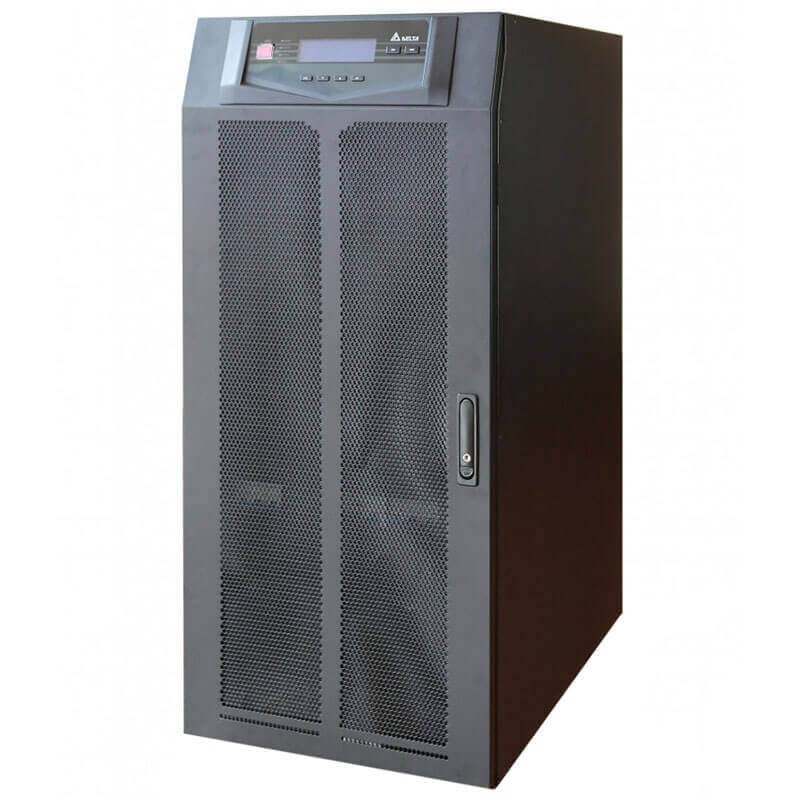

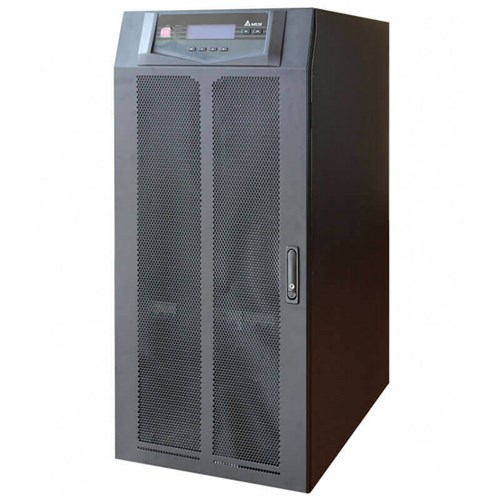

Delta GES803HH330135 Double Conversion Online UPS HPH 80000W 380/400/415VAC 3PH

Product Code: GES803HH330135

  • High efficiency >96% for energy saving
  • Supports 380/400/415 VAC, 3-phase input
  • LCD screen with LED indicators for easy monitoring
  • Robust IP66 protection against dust and water
  • Compatible with VRLA/Lithium-Ion batteries
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
UPS
Brand
Delta
Series
HPH
Application
Data Center, Telecom, Industrial, Medical

Electrical

1P / 3P / DC
3P
Battery Monitoring System
Battery temp sensing
Communication / Network Card
SNMP/Modbus via smart slot
External Chargers
Optional charger
kVA / kW (at unity Power Factor)
80 kVA/80 kW
Maintenance Bypass
Built-in manual bypass
On-board Battery / Seperate Battery Cabinet
Separate battery cabinet
Remote Monitoring
Yes
Replacement Batteries
VRLA batteries

Mechanical

Tower / Rack / Cabinet
Tower cabinet

Dimensions & Physical Data

Depth
800mm
Height
1175mm
Weight
191kg
Width
520mm

Environmental

Derated Temperature (Derating)
40°C to 45°C
Operating Temperature without Derating
0°C to 40°C
Storage Temperature
-20°C to 50°C
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
IEC 62040-2, IEC 62040-3, CE

Documents

IPD Product Catalogue V17
