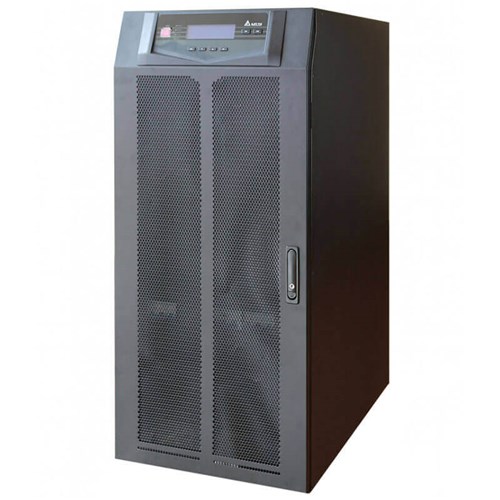

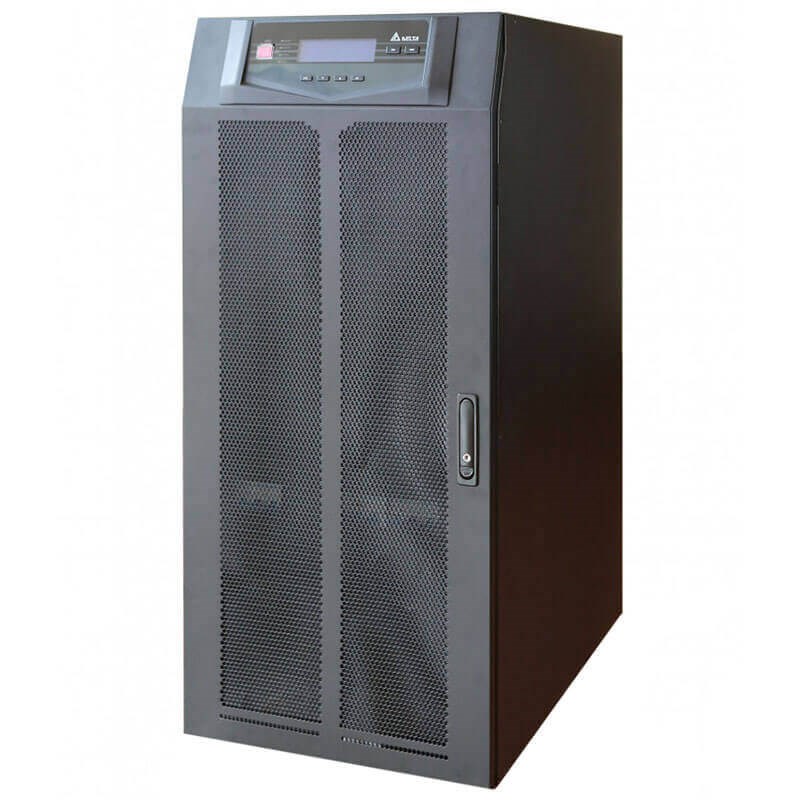

Delta GES603HH330135 Double Conversion Online UPS HPH 60000W 380/400/415VAC 3PH

Product Code: GES603HH330135

  • High power capacity of 60000 W
  • Compatible with 380/400/415 VAC systems
  • Operates on both 50/60 Hz frequencies
  • Robust IP66 protection for harsh environments
  • Clear LCD display for easy monitoring
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
UPS
Brand
Delta
Series
HPH
Application
Data Center, Telecom, Industrial, Medical

Electrical

1P / 3P / DC
3P
Battery Monitoring System
Battery temp sensing
Communication / Network Card
SNMP/Modbus via smart slot
External Chargers
Optional charger
kVA / kW (at unity Power Factor)
60 kVA/ 60 kW
Maintenance Bypass
Built-in manual bypass
On-board Battery / Seperate Battery Cabinet
Separate battery cabinet
Remote Monitoring
Yes
Replacement Batteries
VRLA batteries

Mechanical

Tower / Rack / Cabinet
Tower cabinet

Dimensions & Physical Data

Depth
1760mm
Height
520mm
Weight
186.5kg
Width
800mm

Environmental

Derated Temperature (Derating)
40-45°C derating
Operating Temperature without Derating
0°C to 40°C
Storage Temperature
-20°C to 50°C
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
IEC 62040-2, IEC 62040-3, CE, UKCA, RCM
