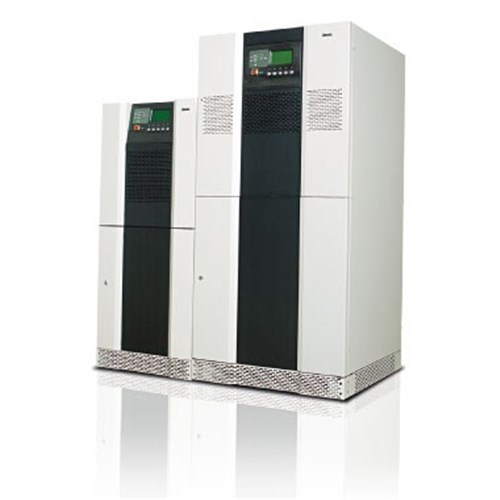

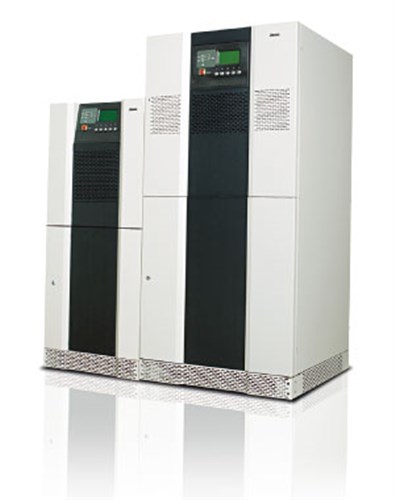

Delta GES504NT3342035 Monoblock Smart Slot UPS NT 500kVA 12Pulse

Product Code: GES504NT3342035

  • High capacity with 500 kVA rated power
  • Flexible output frequency: 50/60 Hz
  • Wide input frequency range: 45/65 Hz
  • Robust IP66 protection rating
  • Operates in humidity up to 95%
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
UPS
Brand
Delta
Series
NT
Application
Data Center, Telecom, Industrial, Healthcare, Transportation

Electrical

1P / 3P / DC
3P
Battery Monitoring System
Battery temp sensing
Communication / Network Card
SNMP/Modbus via smart slot
External Chargers
Optional charger board 20A
kVA / kW (at unity Power Factor)
500 kVA/450 kW
Maintenance Bypass
Built-in manual bypass
On-board Battery / Seperate Battery Cabinet
Separate battery cabinet
Remote Monitoring
Yes
Replacement Batteries
VRLA batteries
Terminal Type
SQNBS180-10

Mechanical

Tower / Rack / Cabinet
Tower cabinet

Dimensions & Physical Data

Depth
1600mm
Height
1950mm
Weight
3110kg
Width
995mm

Environmental

Derated Temperature (Derating)
40-45°C derating
Operating Temperature without Derating
0°C to 40°C
Storage Temperature
-20°C to 50°C
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
IEC 62040-2, IEC 62040-3, CE
