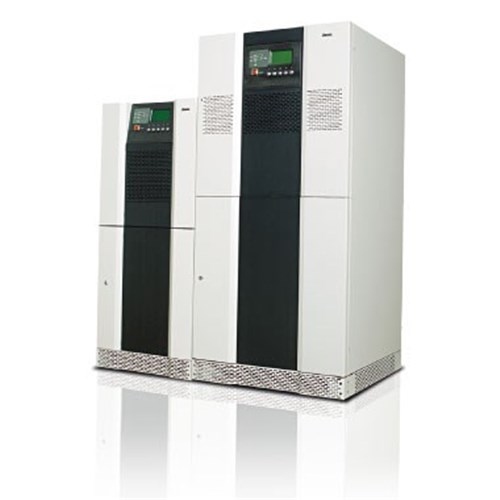

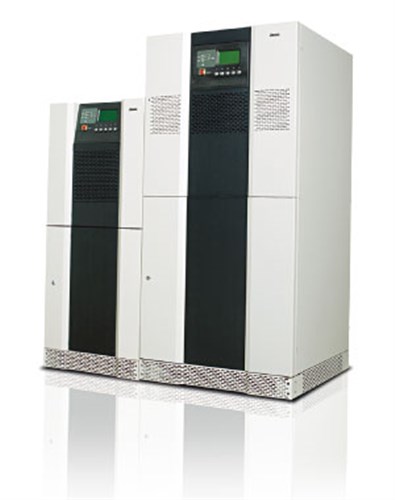

Delta GES264NT3342035 Monoblock Smart Slot UPS NT 234000W 12Pulse

Product Code: GES264NT3342035

  • High power capacity of 234 kW
  • Flexible output frequency: 50/60 Hz
  • Wide input frequency range: 45/65 Hz
  • Robust IP66 protection rating
  • Operates in humid conditions up to 95%
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
UPS
Brand
Delta
Series
NT
Application
Data Center, Telecom, Industrial, Healthcare, Transportation

Electrical

1P / 3P / DC
3P
Battery Monitoring System
Optional
Communication / Network Card
RS232 RS485 Smart Slot
External Chargers
Optional
kVA / kW (at unity Power Factor)
260 kVA/208 kW
Maintenance Bypass
Built-in maintenance bypass
On-board Battery / Seperate Battery Cabinet
Separate battery cabinet
Remote Monitoring
Yes
Replacement Batteries
VRLA batteries
Terminal Type
SQNBS180-10

Mechanical

Tower / Rack / Cabinet
Tower cabinet

Dimensions & Physical Data

Depth
995mm
Height
1950mm
Weight
1560kg
Width
1600mm

Environmental

Operating Temperature without Derating
0°C to 40°C
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
IEC 62040-3
