Products

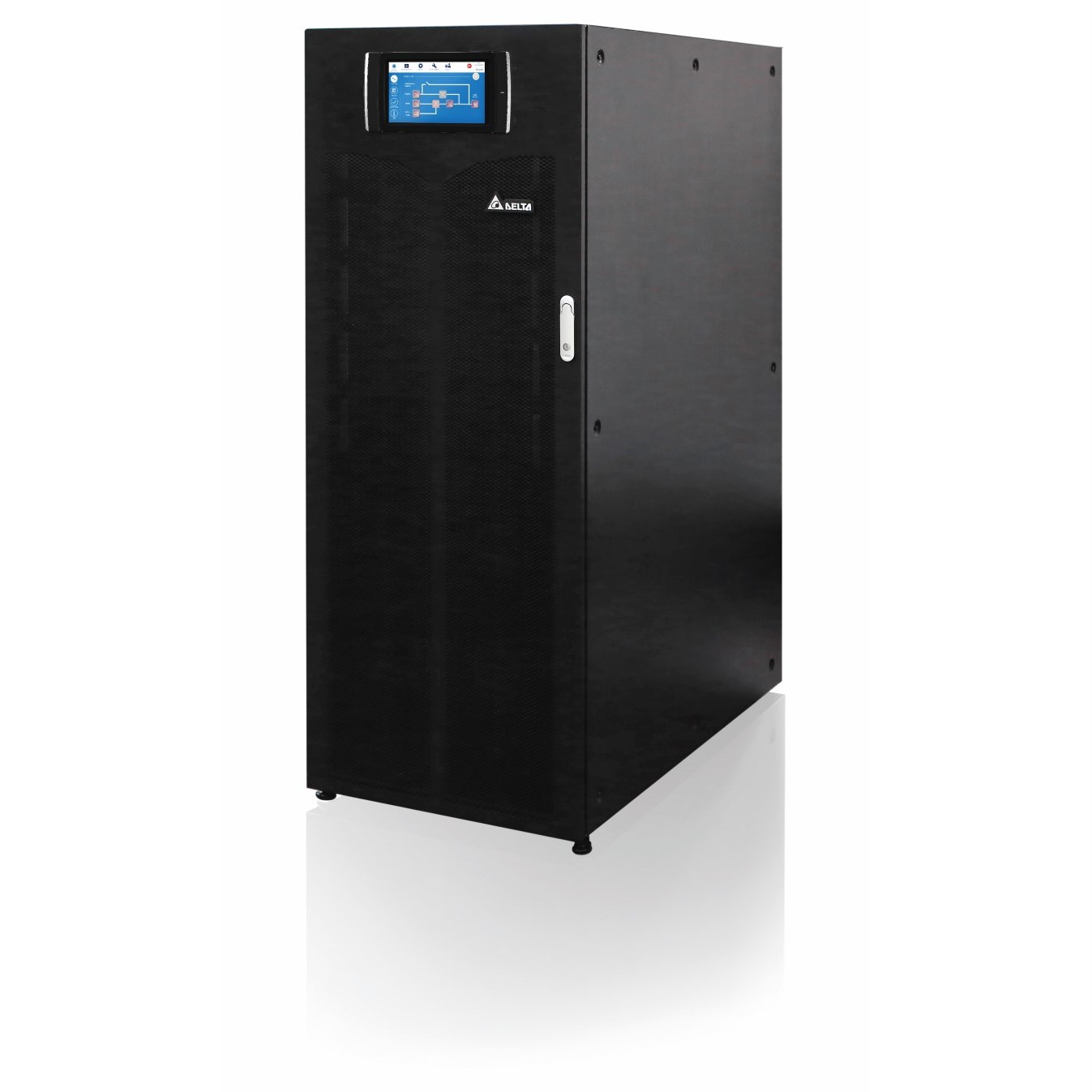

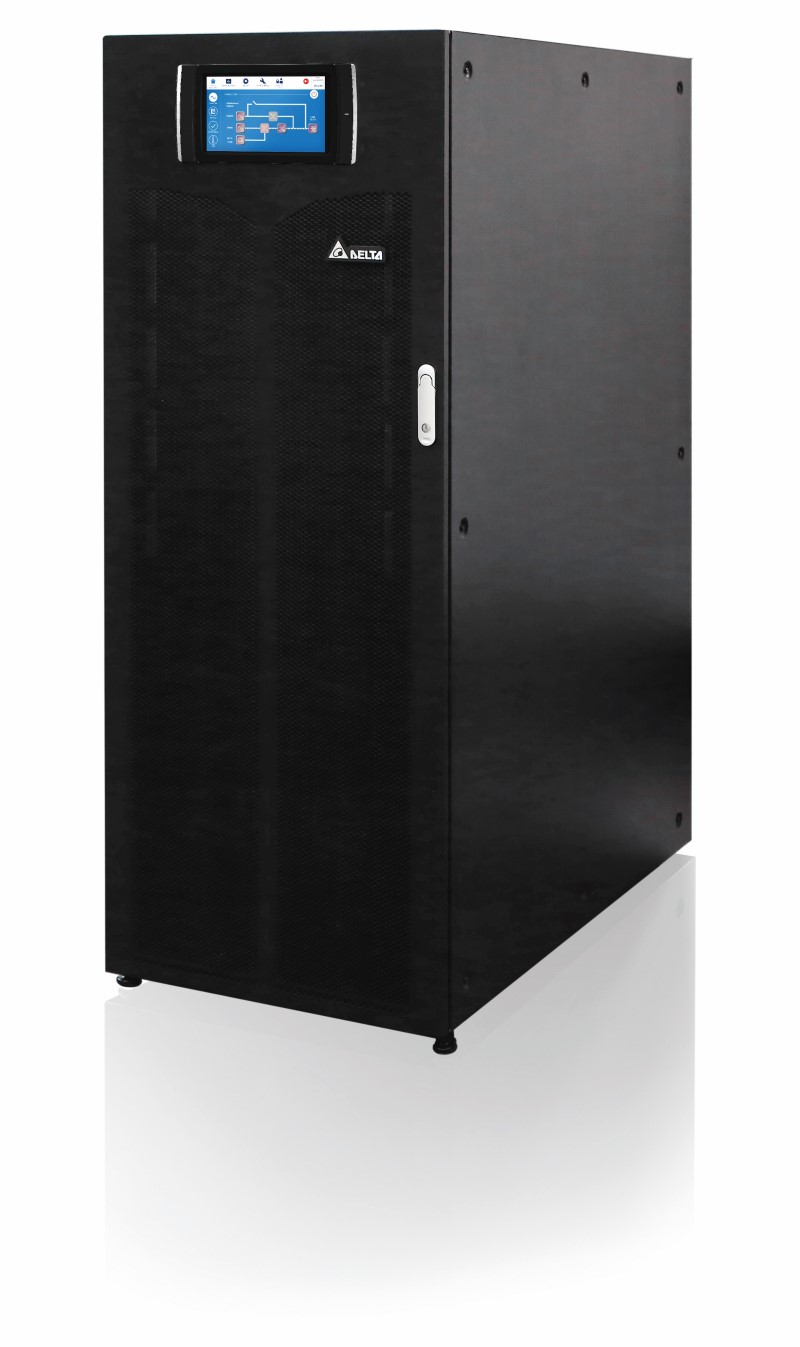

Delta GES204HH330035 Double Conversion Online UPS HPH 200000W 220/380VAC 230/400VAC 240/415VAC 3PH

Product Code: GES204HH330035

  • High power capacity: 200 kW
  • Wide voltage range: 220/380 to 240/415 VAC
  • Flexible frequency support: 40-70 Hz input
  • Robust protection with IP66 rating
  • Operates in diverse climates, 0 to 40°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
UPS
Brand
Delta
Series
HPH
Application
Data Center, Telecom, Industrial, Medical

Electrical

1P / 3P / DC
3P
Battery Monitoring System
Battery temp sensing
Communication / Network Card
SNMP/Modbus via smart slot
External Chargers
Optional charger
kVA / kW (at unity Power Factor)
200 kVA/200 kW
Maintenance Bypass
Built-in manual bypass
On-board Battery / Seperate Battery Cabinet
Separate battery cabinet
Remote Monitoring
Yes
Replacement Batteries
VRLA batteries

Mechanical

Tower / Rack / Cabinet
Tower cabinet

Dimensions & Physical Data

Depth
1100mm
Height
1600mm
Weight
376kg
Width
600mm

Environmental

Derated Temperature (Derating)
40-45°C derating
Operating Temperature without Derating
0°C to 40°C
Storage Temperature
-20°C to 50°C
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
IEC 62040-2, IEC 62040-3, CE, UKCA, RCM

Documents

IPD Product Catalogue V17
