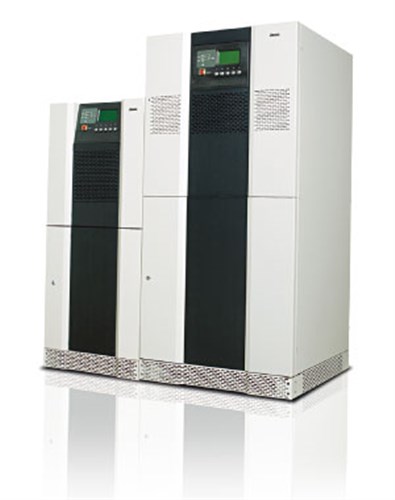

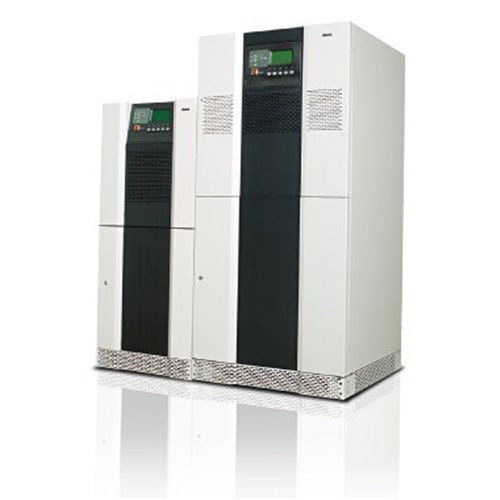

Delta GES124NT3342035 Monoblock Smart Slot UPS NT 120kVA 12Pulse

Product Code: GES124NT3342035

  • 120 kVA rated power for robust performance
  • IP66 protection for harsh environments
  • Versatile 50/60 Hz output frequency
  • Operates in 0 to 40°C temperature range
  • Supports wide input frequency of 45/65 Hz
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
UPS
Brand
Delta
Series
NT
Application
Data Center, Telecom, Industrial, Healthcare, Transportation

Electrical

1P / 3P / DC
3P
Battery Monitoring System
Optional
Communication / Network Card
RS232 RS485 Smart Slot
External Chargers
Optional
kVA / kW (at unity Power Factor)
120 kVA/96 kW
Maintenance Bypass
Built-in maintenance bypass
On-board Battery / Seperate Battery Cabinet
Separate battery cabinet
Remote Monitoring
Yes
Replacement Batteries
VRLA batteries
Terminal Type
SQNBS180-10

Mechanical

Tower / Rack / Cabinet
Tower cabinet

Dimensions & Physical Data

Depth
1200mm
Height
1700mm
Weight
1102kg
Width
830mm

Environmental

Operating Temperature without Derating
0°C to 40°C
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
IEC 62040-3
