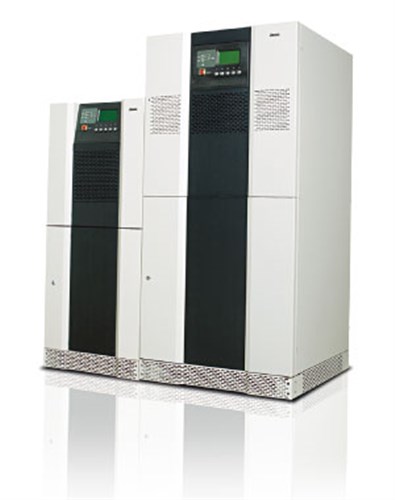

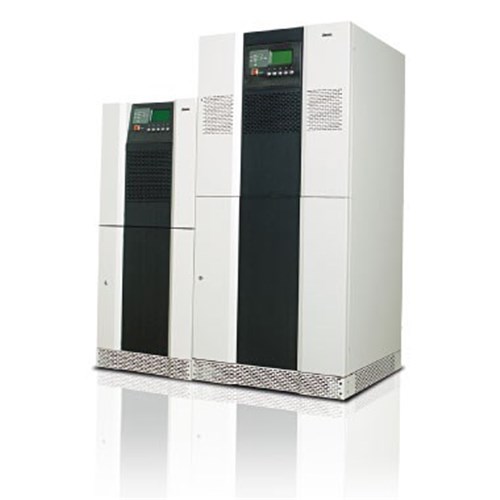

Delta GES124NT3322035 Monoblock Smart Slot UPS NT 120kVA 6Pulse

Product Code: GES124NT3322035

  • High-capacity 120 kVA UPS
  • Flexible 50/60 Hz output frequency
  • Robust IP66 protection rating
  • Operates in 0 to 40°C environments
  • Compact design: 800x1700x830 mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
UPS
Brand
Delta
Series
NT
Application
Data Center, Telecom, Industrial, Healthcare, Transportation

Electrical

1P / 3P / DC
3P
Battery Monitoring System
Optional
Communication / Network Card
RS232 RS485 Smart Slot
External Chargers
Optional
kVA / kW (at unity Power Factor)
120 kVA/96 kW
Maintenance Bypass
Built-in maintenance bypass
On-board Battery / Seperate Battery Cabinet
Separate battery cabinet
Remote Monitoring
Yes
Replacement Batteries
VRLA batteries
Terminal Type
SQNBS180-10

Mechanical

Tower / Rack / Cabinet
Tower cabinet

Dimensions & Physical Data

Depth
830mm
Height
1700mm
Weight
745kg
Width
800mm

Environmental

Operating Temperature without Derating
0°C to 40°C
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
IEC 62040-3

Documents

IPD Product Catalogue V17
