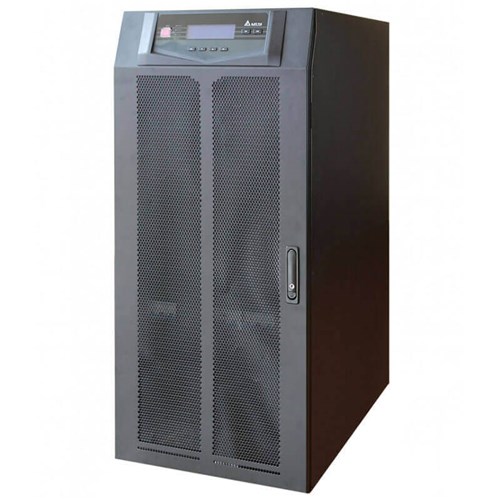

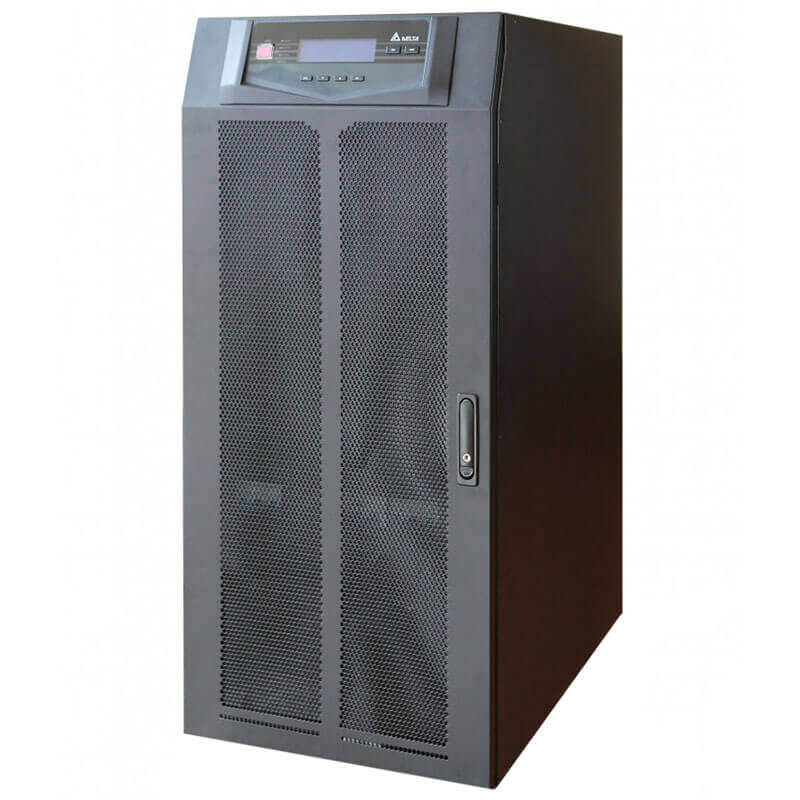

Delta GES124HH330135 Double Conversion Online UPS HPH 120000W 3PH

Product Code: GES124HH330135

  • High power capacity of 120 kW
  • Exceptional power factor > 0.99
  • Supports both VRLA and Lithium-Ion batteries
  • Wide input frequency range: 40/70 Hz
  • Robust IP66 protection rating
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
UPS
Brand
Delta
Series
HPH
Application
Data Center, Telecom, Industrial, Medical

Electrical

1P / 3P / DC
3P
Battery Monitoring System
External battery temp sensing
Communication / Network Card
SNMP/Modbus via smart slot
External Chargers
Optional charger board up to 40A
kVA / kW (at unity Power Factor)
120 kVA/120 kW
Maintenance Bypass
Built-in manual bypass
On-board Battery / Seperate Battery Cabinet
Separate battery cabinet
Remote Monitoring
Yes
Replacement Batteries
VRLA batteries

Mechanical

Tower / Rack / Cabinet
Tower cabinet

Dimensions & Physical Data

Depth
800mm
Height
1760mm
Weight
312kg
Width
520mm

Environmental

Derated Temperature (Derating)
40-45°C derating
Operating Temperature without Derating
0°C to 40°C
Storage Temperature
-20°C to 50°C
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
IEC 62040-2, IEC 62040-3, CE, UKCA, RCM

Documents

IPD Product Catalogue V17
