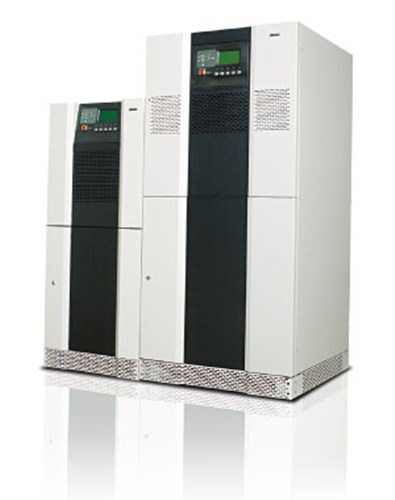

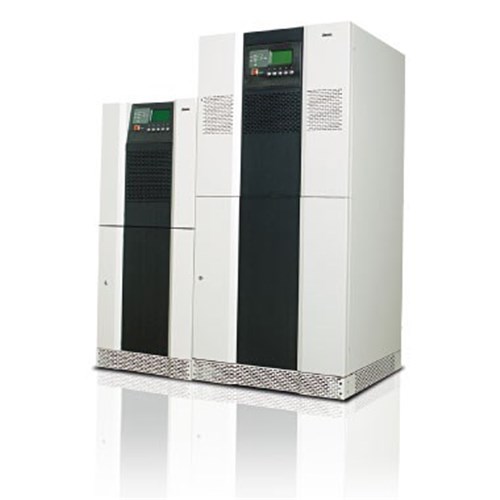

Delta GES104NT3322035 Monoblock Smart Slot UPS NT 80000W 6Pulse

Product Code: GES104NT3322035

  • High 80kW power capacity for demanding needs
  • Flexible output frequency of 50/60 Hz
  • Robust IP66 protection against dust and water
  • Operates efficiently in 0-95% humidity range
  • Compact design: 800mm x 1700mm x 830mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
UPS
Brand
Delta
Series
NT
Application
Data Center, Telecom, Industrial, Healthcare, Transportation

Electrical

1P / 3P / DC
3P
Battery Monitoring System
Optional
Communication / Network Card
RS232 RS485 Smart Slot
External Chargers
Optional
kVA / kW (at unity Power Factor)
80 kVA/64 kW
Maintenance Bypass
Built-in maintenance bypass
On-board Battery / Seperate Battery Cabinet
Separate battery cabinet
Remote Monitoring
Yes
Replacement Batteries
VRLA batteries
Terminal Type
SQNBS180-10

Mechanical

Tower / Rack / Cabinet
Tower cabinet

Dimensions & Physical Data

Depth
800mm
Height
1400mm
Weight
525kg
Width
600mm

Environmental

Operating Temperature without Derating
0°C to 40°C
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
IEC 62040-2, IEC 62040-3, CE, UKCA, RCM

Documents

IPD Product Catalogue V17
