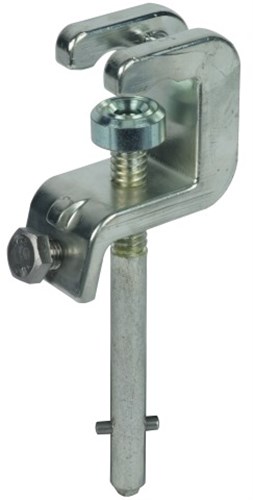

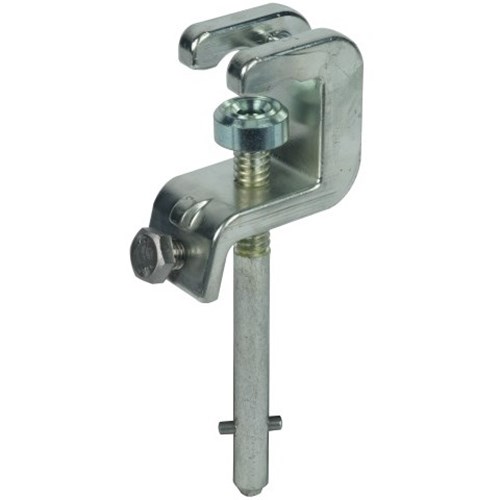

DEHN UK30SQL Universal Clamp W/T-Pin Shaft 30mm 25/30mm Fixed Ball Point Copper Alloy

Product Code: UK30SQL

  • Supports currents of 33.5 A and 23.7 A
  • Copper alloy for enhanced durability
  • Compatible with 25/30 mm fixed ball point
  • Operates in -25 to 55°C temperature range
  • Meets EN/IEC 61230 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Universal Clamp
Brand
DEHN
Series
Phase Connecting Elements for Overhead Lines
Application
Connection elements in accordance with EN / IEC 61230 (DIN VDE 0683-100) for single-pole / three-pole earthing and short-circuiting cables

Electrical

Max. Short Circuit Current
33.5kA
Fixed Ball Point Diameter
25mm, 30mm

Mechanical

Cable Cross Section
16mm² to 120mm²
Material
St/gal Zn, Copper alloy/gal Sn

Dimensions & Physical Data

Weight
0.793kg

Documents

IPD Product Catalogue V17
