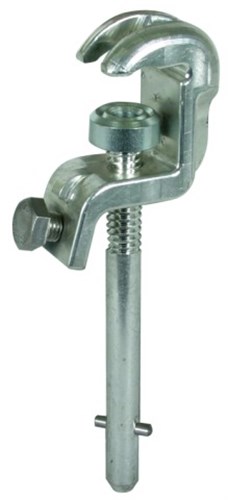

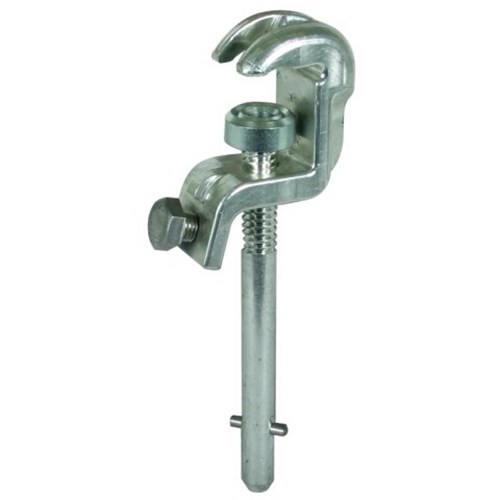

DEHN UK25SQL Universal Clamp W/T-Pin Shaft 20mm 20/25mm Fixed Ball Point Copper Alloy

Product Code: UK25SQL

  • Suitable for 33.5 A and 23.7 A applications
  • Fixed ball point connection, 20/25 mm
  • Copper alloy for durability and longevity
  • Complies with EN/IEC 61230 standards
  • Operates from -25 to 55°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Universal Clamp
Brand
DEHN
Series
Phase Connecting Elements for Overhead Lines
Application
Connection elements in accordance with EN / IEC 61230 (DIN VDE 0683-100) for single-pole / three-pole earthing and short-circuiting cables

Electrical

Max. Short Circuit Current
33.5kA
Fixed Ball Point Diameter
20mm, 25mm

Mechanical

Cable Cross Section
16mm² to 120mm²
Material
St/gal Zn, Copper alloy/gal Sn

Dimensions & Physical Data

Weight
0.7135kg
