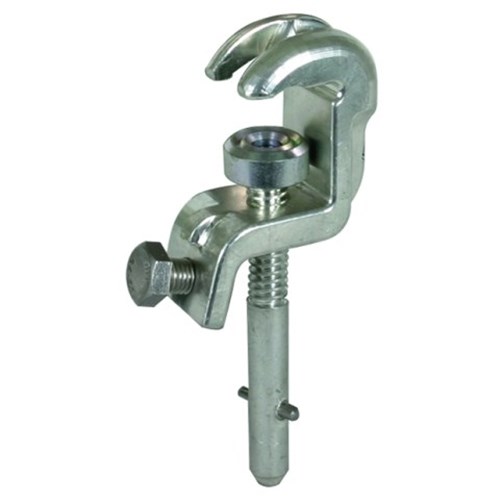

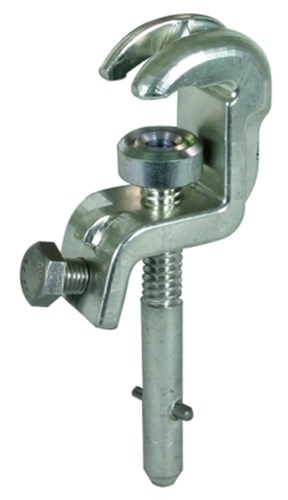

DEHN UK25SQ Universal Clamp W/T-Pin Shaft 10mm 5mm 20/25mm Fixed Ball Point Copper Alloy

Product Code: UK25SQ

  • Suitable for 20/25 mm fixed ball point connections
  • Handles currents of 33.5 A and 23.7 A
  • Copper alloy construction ensures durability
  • Complies with EN/IEC 61230 standards
  • Operates in -25 to 55°C temperature range
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Universal Clamp, T Pin Shaft
Brand
DEHN
Series
Phase Connecting Elements for Switchgear Installations
Application
Connection elements in accordance with EN / IEC 61230 (DIN VDE 0683-100) for single-pole / three-pole earthing and short-circuiting cables

Electrical

Max. Short Circuit Current
33.5kA
Fixed Ball Point Diameter
20mm, 25mm

Mechanical

Cable Cross Section
16mm² to 120mm²
Material
Copper alloy/gal Sn, St/gal Zn

Dimensions & Physical Data

Weight
0.6606kg
