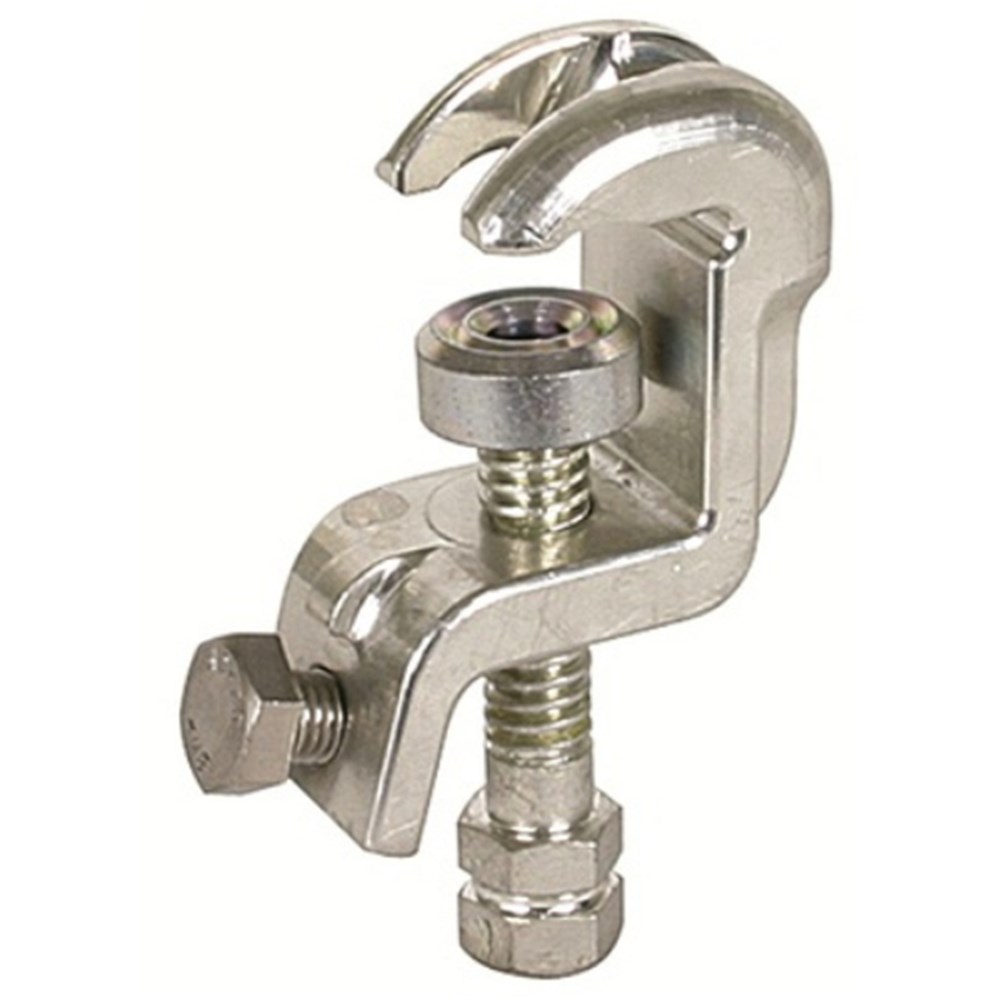

DEHN UK25SK Universal Clamp W/Hexa Shaft 20mm 20/25mm Fixed Ball Point Copper Alloy

Product Code: UK25SK

  • Handles 33.5 A and 23.7 A currents
  • Suitable for 20/25 mm fixed ball connection
  • Compact size: 35x135x69 mm
  • Operates between -25 to 55°C
  • Made from durable copper alloy
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Universal Clamp, Hexagon Shaft
Brand
DEHN
Series
Phase Connecting Elements for Switchgear Installations
Application
Connection elements in accordance with EN / IEC 61230 (DIN VDE 0683-100) for single-pole / three-pole earthing and short-circuiting cables

Electrical

Max. Short Circuit Current
33.5kA
Fixed Ball Point Diameter
20mm, 25mm

Mechanical

Cable Cross Section
16mm² to 120mm²
Material
Copper alloy/gal Sn, St/gal Zn

Dimensions & Physical Data

Weight
0.6344kg
