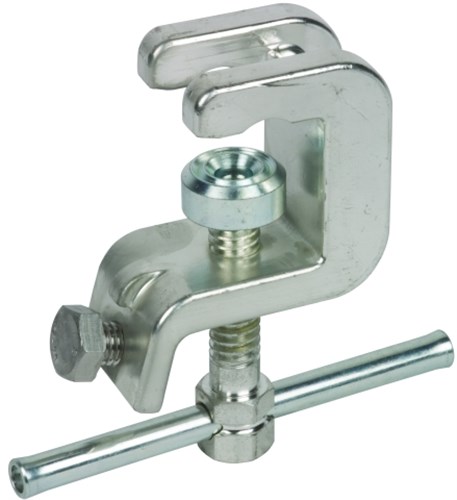

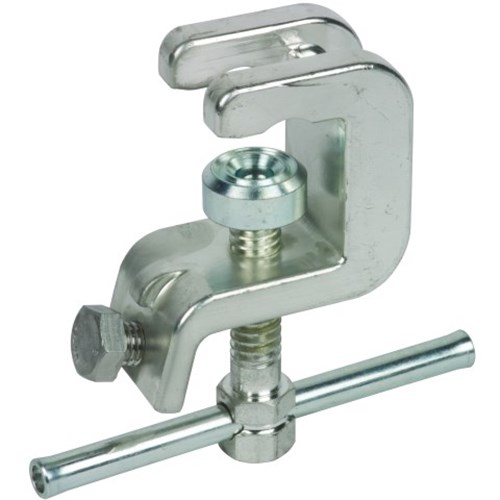

DEHN UEK30SKN Universal Earthing Clamp W/Tommy Bar 30mm 30mm Fixed Ball Point Copper Alloy

Product Code: UEK30SKN

  • Rated for 33505 A & 23700 A
  • 30 mm fixed ball point connection
  • Meets EN/IEC 61230 standards
  • Compact size: 135x40x74 mm
  • Durable copper alloy construction
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Universal Clamp With Tommy Bar
Brand
DEHN
Series
Earth Connecting Elements for Switchgear Installations and Overhead Lines
Application
Connection elements in accordance with EN / IEC 61230 (DIN VDE 0683-100) for single-pole / three-pole earthing and short-circuiting cables

Electrical

Max. Short Circuit Current
33.5kA
Fixed Ball Point Diameter
30mm

Mechanical

Cable Cross Section
16mm² to 120mm²
Material
Copper alloy/gal Sn, St/gal Zn, Cu alloy/gal Sn, E-Cu/gal Sn, Hardened/nikel-plated steel, Spring steel

Dimensions & Physical Data

Weight
0.7kg
