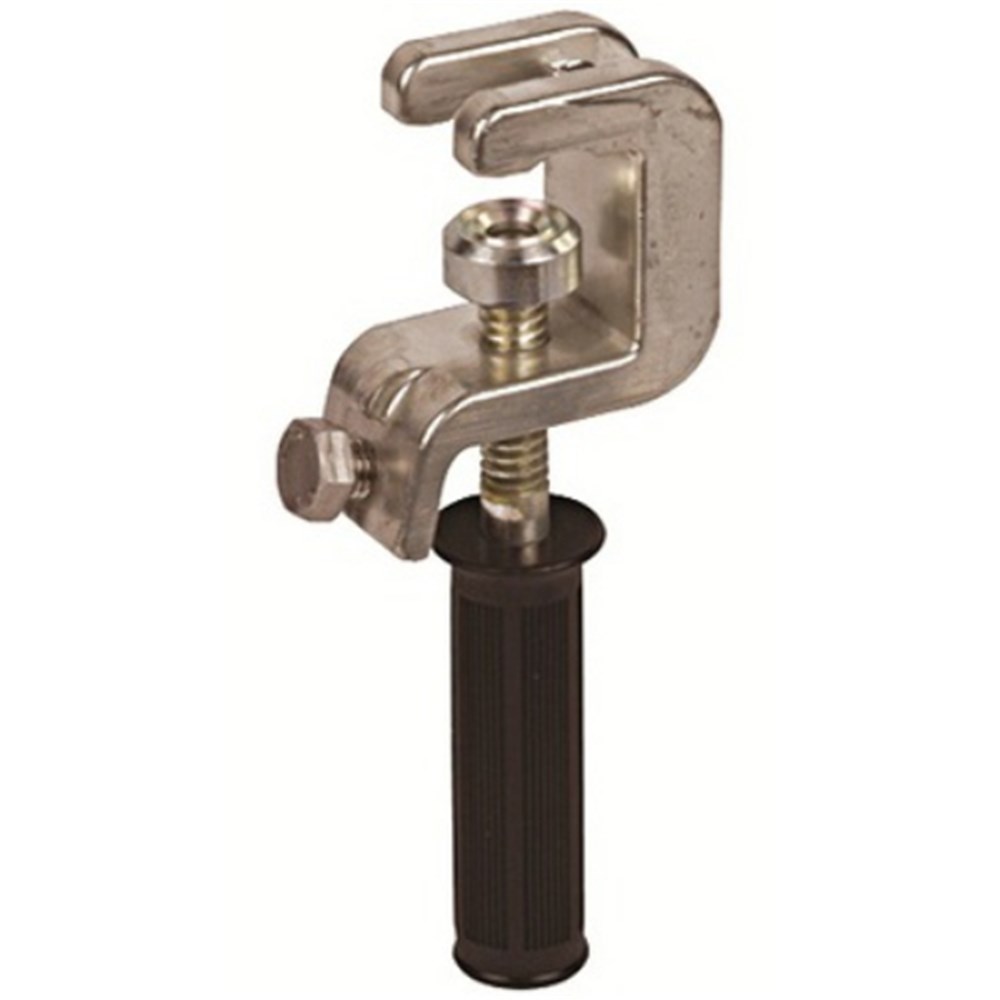

DEHN UEK30HG Universal Earthing Clamp W/Handle 30mm 25/30mm Fixed Ball Point Copper Alloy

Product Code: UEK30HG

  • Copper alloy for durability and conductivity
  • Handles currents up to 33504 A
  • Fixed ball point connection, 25/30 mm
  • Compact size: 40x231x74 mm (WxHxD)
  • Complies with EN/IEC 61230 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Universal Clamp With Handle
Brand
DEHN
Series
Earth Connecting Elements for Switchgear Installations and Overhead Lines
Application
Connection elements in accordance with EN / IEC 61230 (DIN VDE 0683-100) for single-pole / three-pole earthing and short-circuiting cables

Electrical

Max. Short Circuit Current
33.5kA
Fixed Ball Point Diameter
25mm, 30mm

Mechanical

Cable Cross Section
16mm² to 120mm²
Material
Copper alloy/gal Sn, St/gal Zn, Cu alloy/gal Sn, E-Cu/gal Sn, Hardened/nikel-plated steel, Spring steel

Dimensions & Physical Data

Weight
0.941kg
