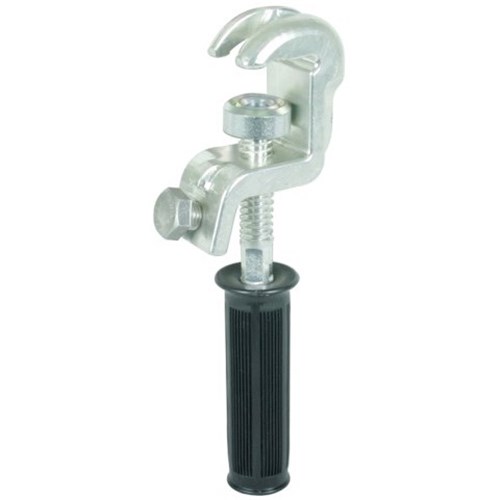

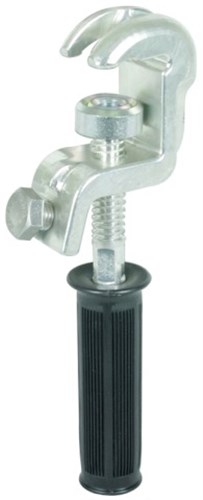

DEHN UEK25HG Universal Earthing Clamp W/Handle 20mm 20/25mm Fixed Ball Point Copper Alloy

Product Code: UEK25HG

  • Rated current: 33501 A, 23700 A
  • Copper alloy construction
  • Clamping range of 20 mm
  • Meets EN/IEC 61230 standards
  • Operates in -25 to 55°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Universal Clamp with Handle
Brand
DEHN
Series
Earth Connecting Elements for Switchgear Installations and Overhead Lines
Application
Connection elements in accordance with EN/IEC 61230 (DIN VDE 0683-100) for single-pole/three-pole earthing and short-circuiting cables.

Electrical

Max. Short Circuit Current
33500 A
Fixed Ball Point Diameter
20 mm, 25 mm

Mechanical

Cable Cross Section
16 to 120 mm2
Material
Copper alloy/gal Sn, St/gal Zn, Cu alloy/gal Sn, E-Cu/gal Sn, Hardened/nikel-plated steel, Spring steel

Dimensions & Physical Data

Weight
771.6 g
