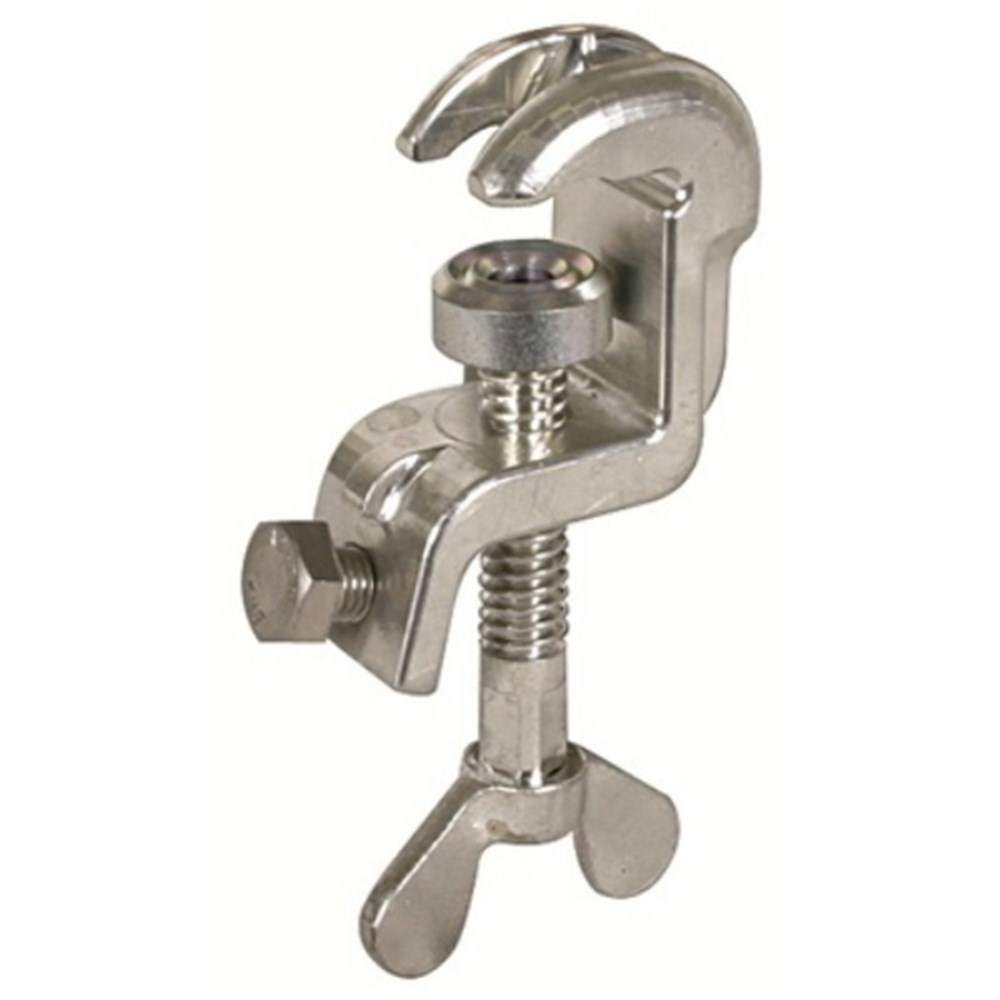

DEHN UEK25FS Universal Earthing Clamp W/Wing Screw 20mm 20/25mm Fixed Ball Point Copper Alloy

Product Code: UEK25FS

  • Rated for high currents: 33.5kA, 23.7kA
  • Fixed ball point connection: 20/25mm
  • Compact size: 35x162x69 mm
  • Made from durable copper alloy
  • Operates in -25 to 55°C range
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Universal Clamp With Wing Bolt
Brand
DEHN
Series
Earth Connecting Elements for Switchgear Installations and Overhead Lines
Application
Connection elements in accordance with EN / IEC 61230 (DIN VDE 0683-100) for single-pole / three-pole earthing and short-circuiting cables

Electrical

Max. Short Circuit Current
33.5kA
Fixed Ball Point Diameter
20mm, 25mm

Mechanical

Cable Cross Section
16mm² to 120mm²
Material
Copper alloy/gal Sn, St/gal Zn, Cu alloy/gal Sn, E-Cu/gal Sn, Hardened/nikel-plated steel, Spring steel

Dimensions & Physical Data

Weight
0.6616kg
