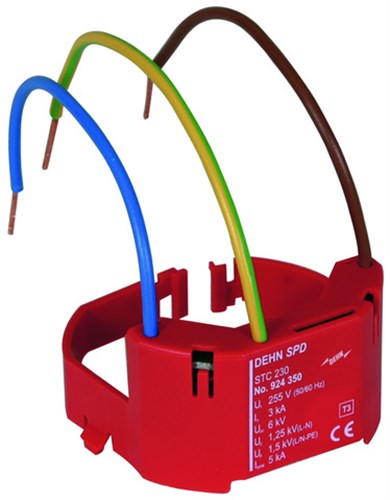

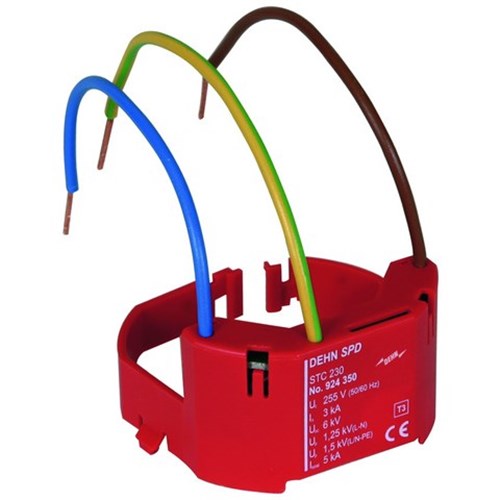

DEHN STC230 Surge Protection Module 2-P 3kA 255VAC Wall Socket Mount IP20

Product Code: STC230

  • Surge protection for power supply systems
  • Compact design: 54x54x32 mm
  • Rated for 255 VAC, 3 kA current
  • IP20 protection rating
  • Complies with EN 61643-11 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Two - Pole Surge Arrester
Brand
DEHN
Series
STC module
Application
For standard Schuko socket outlets

Electrical

Max. Backup Fuse
B 16A
Nominal Voltage
230V AC
Voltage Protection Level Up
1250V, 1500V
Short Circuit Current Rating
1kA
Nominal Discharge Current Inom (8/20µs)
3kA
No. of Poles
2P
Max. Continuous Operating Voltage
255 V AC

Mechanical

Terminal Size
1 mm2

Dimensions & Physical Data

Depth
32mm
Height
54mm
Width
54mm

Environmental

Operating Temperature
-25°C to 40°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
