Specifications

Product Type Surge Arrester	Brand DEHN	Series DEHNguard S
Application For protecting low-voltage consumer's installations against surges

Max. Backup Fuse 125A gG	Nominal Voltage 60V AC	Voltage Protection Level Up 400V
Max. Discharge Current Imax (8/20µs) 40kA	Short Circuit Current Rating 50kA	Nominal Discharge Current Inom (8/20µs) 10kA
No. of Poles 1P	Max. Continuous Operating Voltage 75 V AC, 100 V DC

Terminal Size

1.5 to 35 mm2

No. of Modules Width

Operating Temperature

-40°C to 80°C

IP Rating

IP20

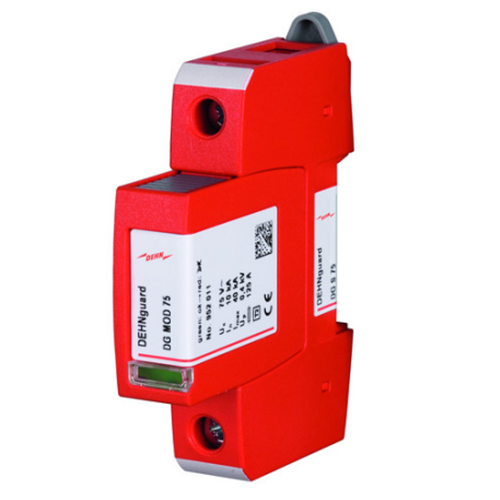

DEHN S SURGE ARRESTER 952071 DGS75-CR
