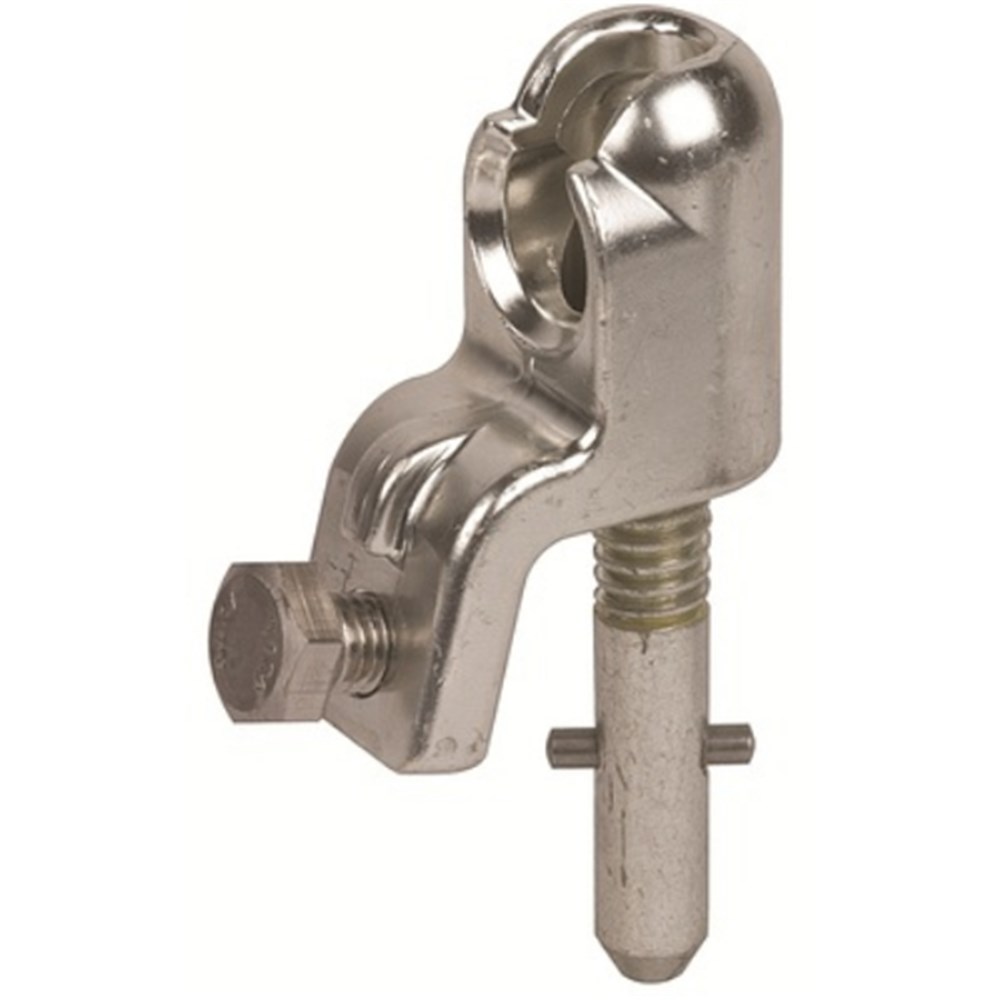

DEHN KKH25SQ Ball Head Cap W/T-Pin Shaft 42000A 25mm Fixed Ball Point 8mm W 4mm D 13mm H Copper Alloy

Product Code: KKH25SQ

  • Handles up to 42,000 A current
  • Fits 25 mm fixed ball point connection
  • Compact size: 8x13x4 mm
  • Operates from -25 to 55°C
  • Made of durable copper alloy
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Rigid Ball Head Cap, T Pin Shaft
Brand
DEHN
Series
Phase Connecting Elements for Switchgear Installations
Application
Connection elements in accordance with EN / IEC 61230 (DIN VDE 0683-100) for single-pole / three-pole earthing and short-circuiting cables

Electrical

Max. Short Circuit Current
42kA
Fixed Ball Point Diameter
25mm

Mechanical

Cable Cross Section
16mm² to 150mm²
Material
Copper alloy/gal Sn

Dimensions & Physical Data

Weight
0.756kg
