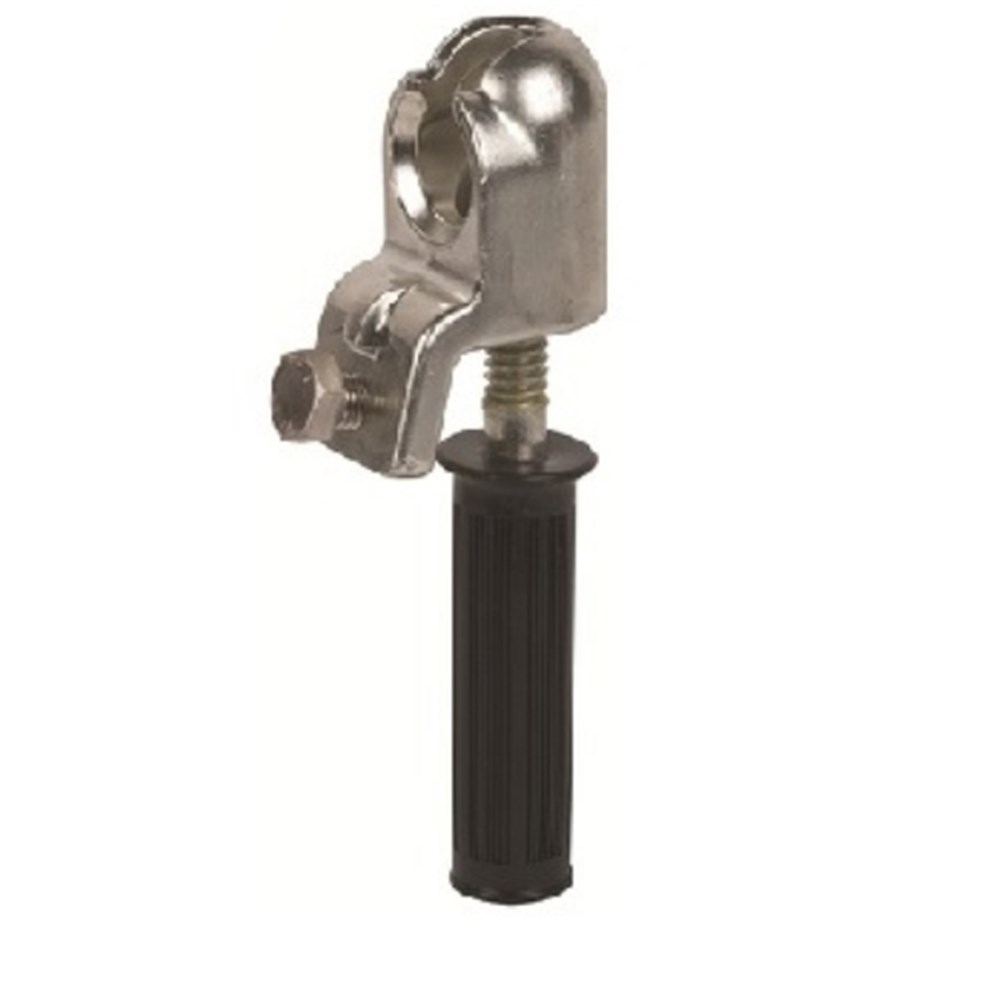

DEHN KKH25HG Ball Head Cap 42000A 25mm Fixed Ball Point 876mm W Copper Alloy

Product Code: KKH25HG

  • Suitable for 25 to 120 sq-mm cables
  • Rated current of 42000 A
  • Operates from -25 to 55°C
  • Complies with EN/IEC 61230 standards
  • Made of durable copper alloy
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Rigid Ball Head Cap With Handle
Brand
DEHN
Series
Earth Connecting Elements for Switchgear Installations and Overhead Lines
Application
Connection elements in accordance with EN / IEC 61230 (DIN VDE 0683-100) for single-pole / three-pole earthing and short-circuiting cables

Electrical

Max. Short Circuit Current
42kA
Fixed Ball Point Diameter
25mm

Mechanical

Cable Cross Section
16mm² to 150mm²
Material
Cu alloy/gal Sn, E-Cu/gal Sn, Hardened/nikel-plated steel, Spring steel

Dimensions & Physical Data

Weight
0.876kg
