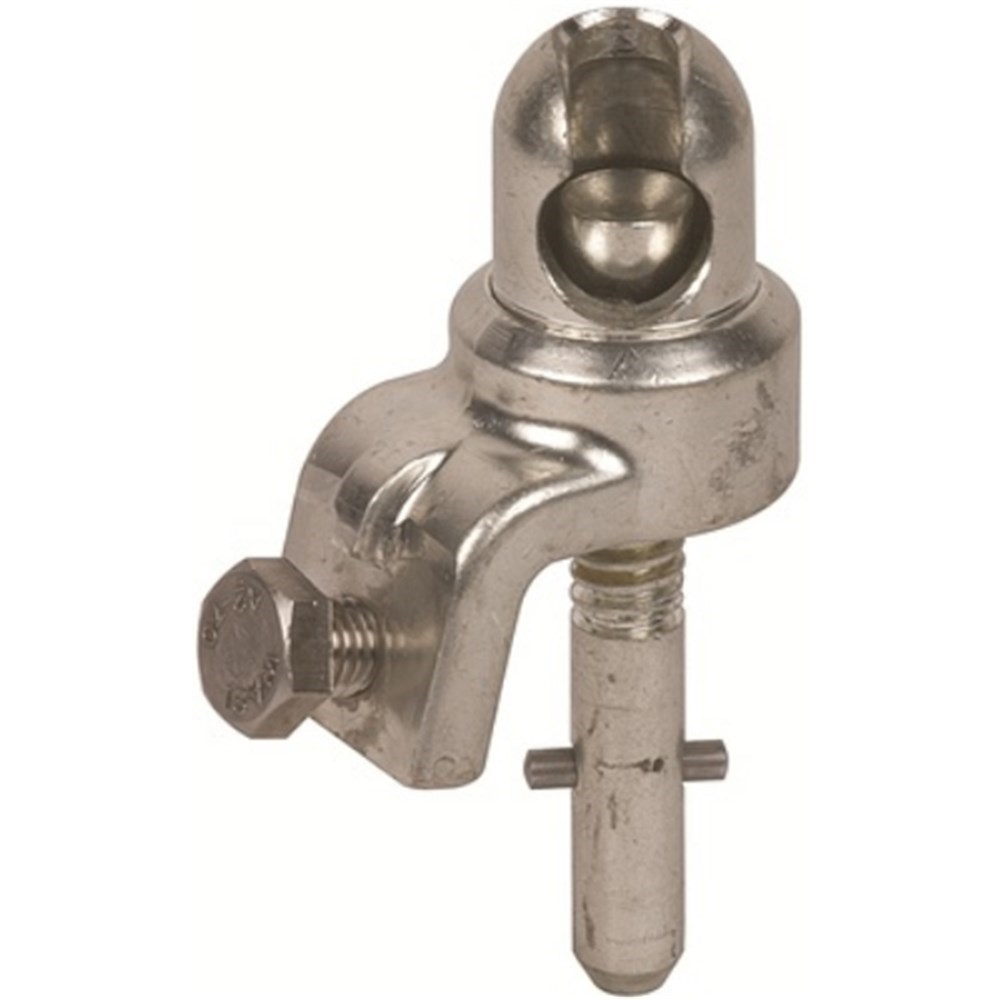

DEHN KKH25DSQ Ball Head Cap 42000A 25mm Fixed Ball Point 9mm W 6mm D 12mm H Copper Alloy

Product Code: KKH25DSQ

  • Rated for 42000 A current capacity
  • Compatible with earthing rods
  • Made from durable copper alloy
  • Operates in -25 to 55°C range
  • Complies with EN/IEC 61230 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Adjustable Ball Head Cap (4X 90 Degrees), T Pin Shaft
Brand
DEHN
Series
Phase Connecting Elements for Switchgear Installations
Application
Connection elements in accordance with EN / IEC 61230 (DIN VDE 0683-100) for single-pole / three-pole earthing and short-circuiting cables

Electrical

Max. Short Circuit Current
42kA
Fixed Ball Point Diameter
25mm

Mechanical

Cable Cross Section
16mm² to 150mm²
Material
Copper alloy/gal Sn

Dimensions & Physical Data

Weight
0.902kg
