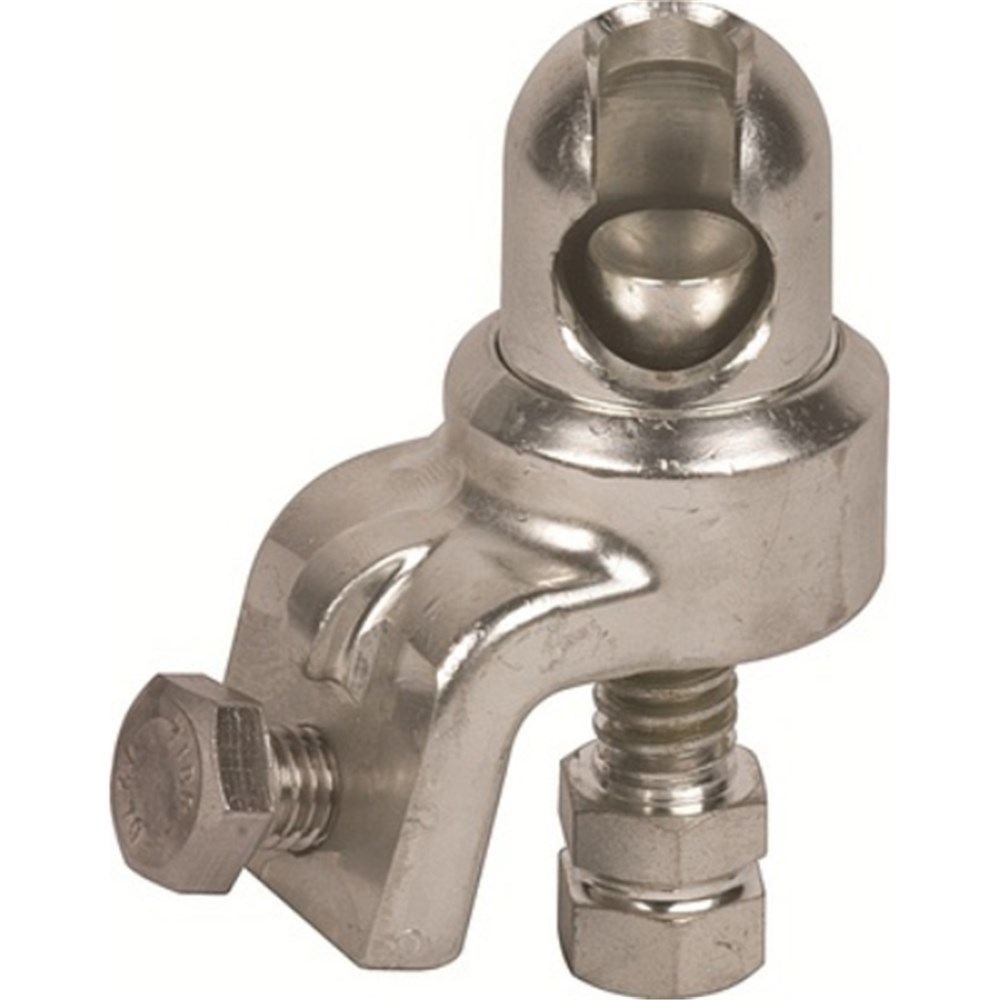

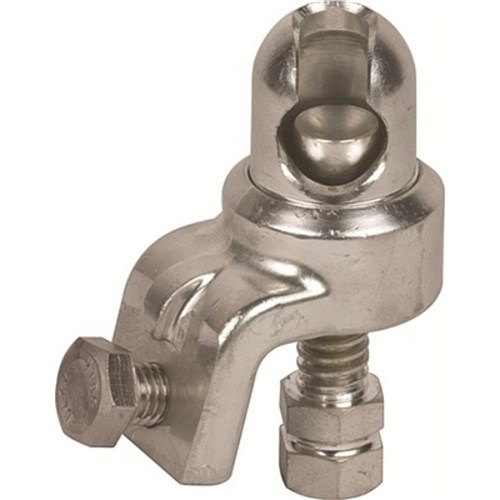

DEHN KKH25DSK Ball Head Cap 42000A 25mm Fixed Ball Point 9mm W 6mm D 11mm H Copper Alloy

Product Code: KKH25DSK

  • Handles up to 42000 A current
  • Fits 25 mm fixed ball point connections
  • Compact size: 9x11x6 mm
  • Operates in -25 to 55°C range
  • Complies with EN/IEC 61230 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Adjustable Ball Head Cap (4X 90 Degrees), Hexagon Shaft
Brand
DEHN
Series
Phase Connecting Elements for Switchgear Installations
Application
Connection elements in accordance with EN / IEC 61230 (DIN VDE 0683-100) for single-pole / three-pole earthing and short-circuiting cables

Electrical

Max. Short Circuit Current
42kA
Fixed Ball Point Diameter
25mm

Mechanical

Cable Cross Section
16mm² to 150mm²
Material
Copper alloy/gal Sn

Dimensions & Physical Data

Weight
0.878kg
