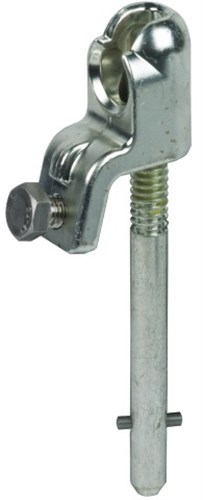

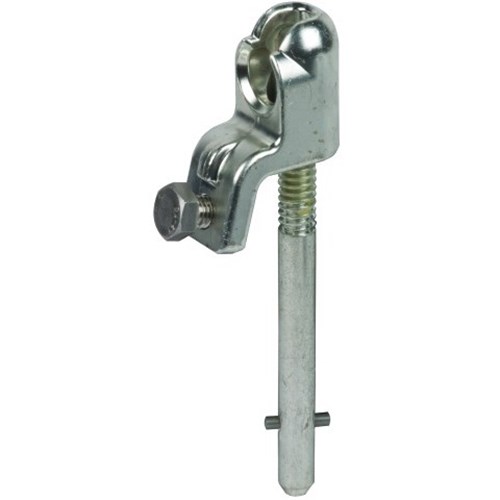

DEHN KKH20SQL Ball Head Cap 33500A 20mm Fixed Ball Point 58mm W 31.5mm D 200mm H Copper Alloy

Product Code: KKH20SQL

  • Rated for 33,500 A current
  • Fits 25 to 120 sq-mm cables
  • Copper alloy construction
  • Operates from -25 to 55°C
  • Complies with EN/IEC standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Rigid Ball Head Cap
Brand
DEHN
Series
Phase Connecting Elements for Overhead Lines
Application
Connection elements in accordance with EN / IEC 61230 (DIN VDE 0683-100) for single-pole / three-pole earthing and short-circuiting cables

Electrical

Max. Short Circuit Current
33.5kA
Fixed Ball Point Diameter
20mm

Mechanical

Cable Cross Section
16mm² to 120mm²
Material
Copper alloy/gal Sn, St/gal Zn

Dimensions & Physical Data

Weight
0.446kg
