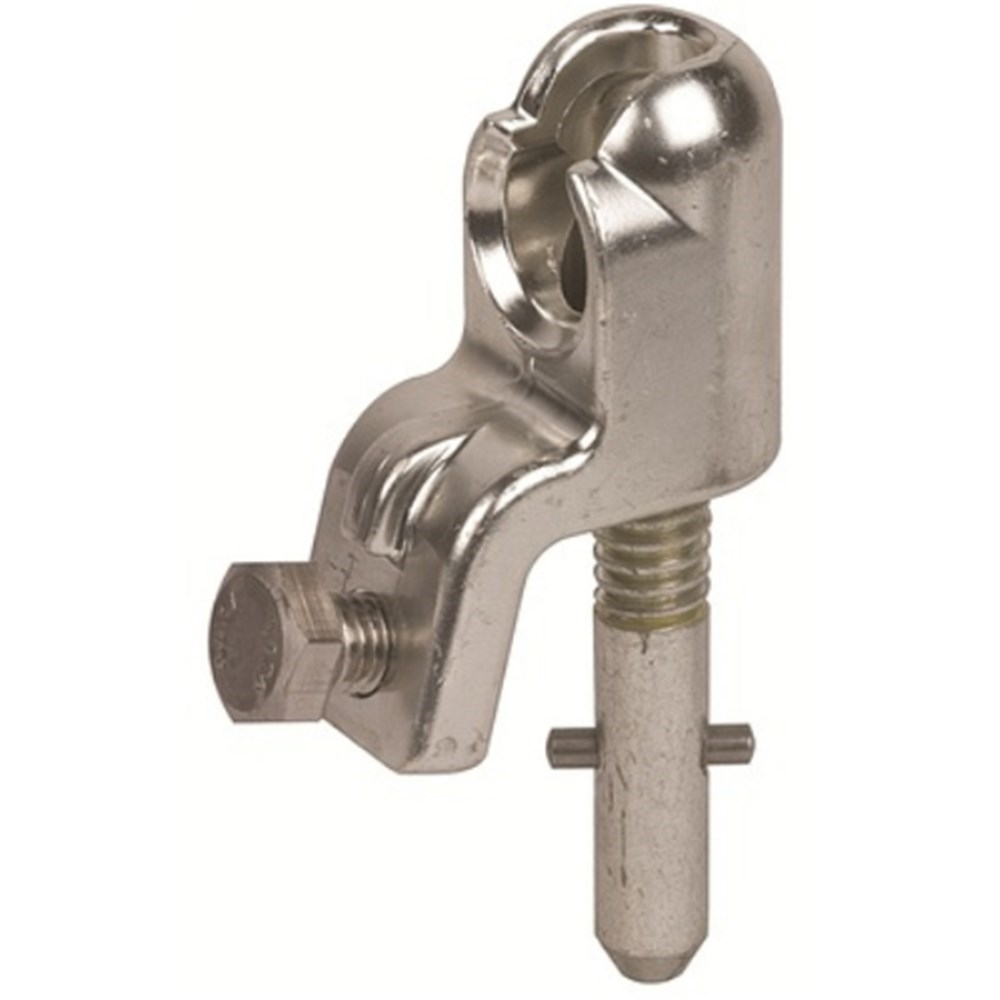

DEHN KKH20SQ Ball Head Cap W/T-Pin Shaft 33500A 20mm Fixed Ball Point 7mm W 3mm D 12mm H Copper Alloy

Product Code: KKH20SQ

  • Handles up to 33,500 A current
  • Compatible with earthing rods
  • Made from durable copper alloy
  • Complies with EN/IEC 61230 standards
  • Operates in -25 to 55°C range
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Rigid Ball Head Cap, T Pin Shaft
Brand
DEHN
Series
Phase Connecting Elements for Switchgear Installations
Application
Connection elements in accordance with EN / IEC 61230 (DIN VDE 0683-100) for single-pole / three-pole earthing and short-circuiting cables

Electrical

Max. Short Circuit Current
33.5kA
Fixed Ball Point Diameter
20mm

Mechanical

Cable Cross Section
16mm² to 120mm²
Material
Copper alloy/gal Sn

Dimensions & Physical Data

Weight
0.482kg
