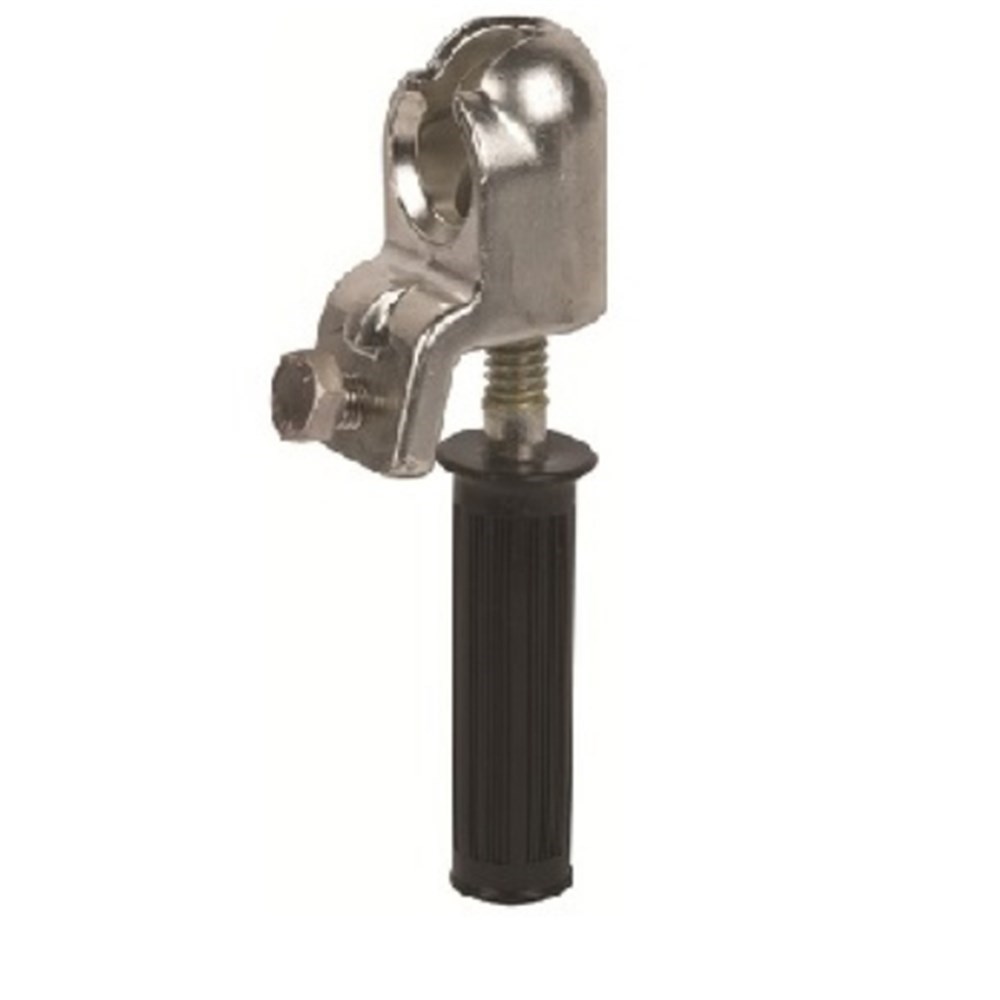

DEHN KKH20HG Ball Head Cap 33500A 20mm Fixed Ball Point 10mm W 4mm D 13mm H Copper Alloy

Product Code: KKH20HG

  • Rated for 33.5 kA current
  • Fits 16-120 sq-mm cables
  • Operates in -25 to 55°C range
  • EN/IEC 61230 approved
  • Durable copper alloy construction
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Rigid Ball Head Cap With Handle
Brand
DEHN
Series
Earth Connecting Elements for Switchgear Installations and Overhead Lines
Application
Connection elements in accordance with EN / IEC 61230 (DIN VDE 0683-100) for single-pole / three-pole earthing and short-circuiting cables

Electrical

Max. Short Circuit Current
33.5kA
Fixed Ball Point Diameter
20mm

Mechanical

Cable Cross Section
16mm² to 120mm²
Material
Cu alloy/gal Sn, E-Cu/gal Sn, Hardened/nikel-plated steel, Spring steel

Dimensions & Physical Data

Weight
0.4kg

Documents

IPD Product Catalogue V17
