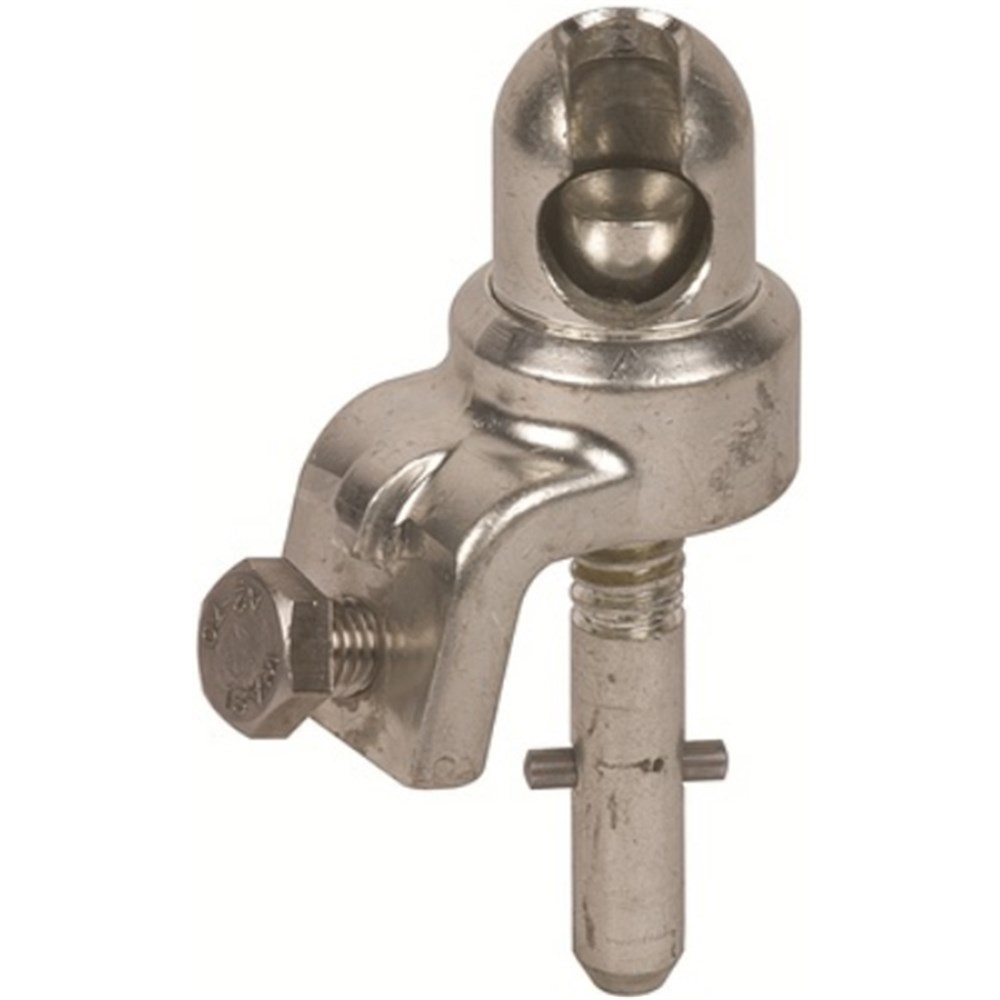

DEHN KKH20DSQ Ball Head Cap With Adjustable T-Pin Shaft 33500A 20mm Fixed Ball Point 140mm H

Product Code: KKH20DSQ

  • Handles up to 33,500 A current
  • Compatible with earthing rods
  • Made from durable copper alloy
  • Operates in -25 to 55°C range
  • Meets EN/IEC 61230 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Adjustable Ball Head Cap (4X 90 Degrees), T Pin Shaft
Brand
DEHN
Series
Phase Connecting Elements for Switchgear Installations
Application
Connection elements in accordance with EN / IEC 61230 (DIN VDE 0683-100) for single-pole / three-pole earthing and short-circuiting cables

Electrical

Max. Short Circuit Current
33.5kA
Fixed Ball Point Diameter
20mm

Mechanical

Cable Cross Section
16mm² to 120mm²
Material
Copper alloy/gal Sn

Dimensions & Physical Data

Weight
0.566kg
