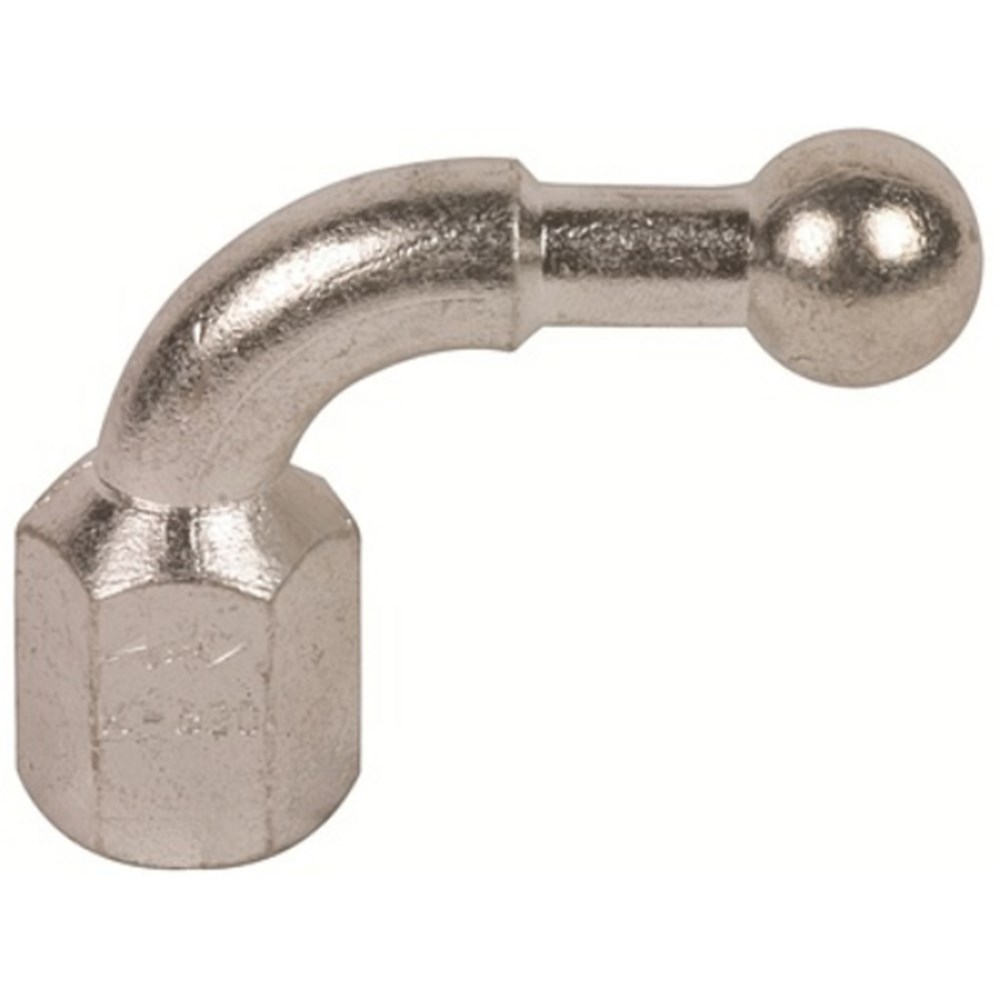

DEHN KFP25W90M12 Angled Fixed Ball Point With M12 Female Thread 26500A 18700A 25mm Internal Thread M12

Product Code: KFP25W90M12

  • Rated current: 26500A, 18700A
  • 25mm fixed ball point connection
  • Internal thread mounting type
  • Made from electrolytic copper, tin coated
  • Complies with EN/IEC standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
90 Degrees Angled With Female Thread
Brand
DEHN
Series
Fixed Ball Points
Application
Line and earth connection point in accordance with EN / IEC 61230 (DIN VDE 0683-100) at the conductor and earth-termination system.

Electrical

Max. Short Circuit Current
26.5kA
Fixed Ball Point Diameter
25mm

Mechanical

Cable Cross Section
95mm²
Material
E-Cu/gal Sn, StSt A2-70

Dimensions & Physical Data

Weight
0.3948kg
