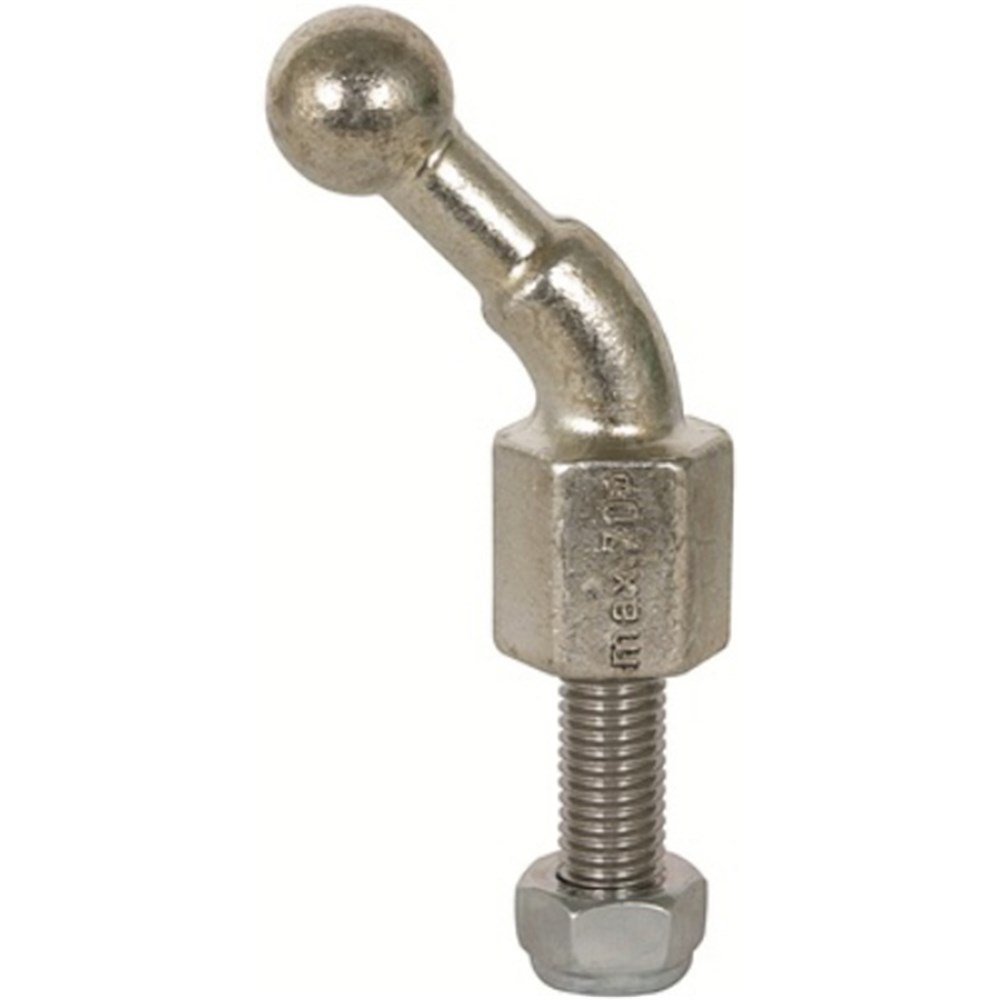

DEHN KFP25W45M1645SSM Angled Fixed Ball Point With Threaded Bolt and Nut 26500A 18700A 25mm Thread Bolt Mount M16x45mm

Product Code: KFP25W45M1645SSM

  • Rated Current: 26500 A, 18700 A
  • Connection: 25 mm Fixed Ball Point
  • Material: Electrolytic & Tin Coated Copper
  • Complies with EN/IEC 61230, DIN VDE Standards
  • Suitable for Earthing Rods
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
45 Degrees Angled With Threaded Pin And Self - Locking Nut
Brand
DEHN
Series
Fixed Ball Points
Application
Line and earth connection point in accordance with EN / IEC 61230 (DIN VDE 0683-100) at the conductor and earth-termination system.

Electrical

Max. Short Circuit Current
26.5kA
Fixed Ball Point Diameter
25mm

Mechanical

Cable Cross Section
95mm²
Material
E-Cu/gal Sn, StSt A2-70

Dimensions & Physical Data

Weight
0.4698kg
